CaseIH MX80C Transmission


CaseIH MX80C tractor photo
1998 - 2002
Utility tractor
Series:MX80CMX90C
Transmissions overview
16-speed partial power shift
32-speed creeper
Transmission
Type:partial power shift
Gears:16 forward and 12 reverse
Clutch:hydraulic wet discs
Four power shift speeds (1-4) in four synchronized ranges (I-IV) with power shuttle. Three ranges in reverse.
Speeds

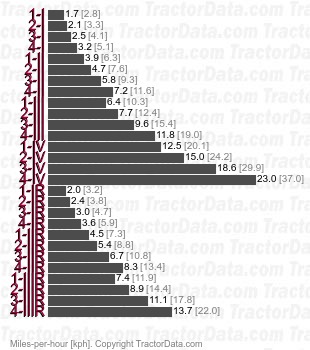

MX80C  partial power shift speeds
Transmission
Type:creeper
Gears:32 forward and 24 reverse
