CaseIH MX80C Tests


CaseIH MX80C tractor photo
1998 - 2002
Utility tractor
Series:MX80CMX90C
OCED Tractor Test 1930

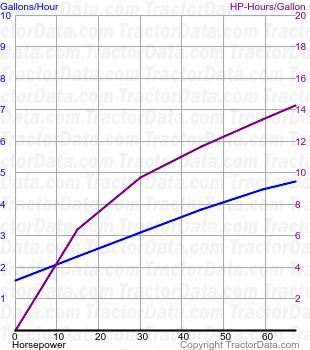

MX80C fuel use from test 356
OCED Tractor Test 1930
Diesel 16-speed 4WD
March 1 - 31, 2000
Link: OCED Tractor Test 1930 file
PTO performance
Max power:67.8 hp
50.6 kW
Fuel use:4.5 gal/hour
17.0 l/hour
Power at rated engine speed:67.1 hp
50.0 kW
Fuel use:4.7 gal/hour
17.8 l/hour
Drawbar performance
Max power:57.3 hp
42.7 kW
Fuel use:4.8 gal/hour
18.2 l/hour
Gear 2-II used for power test.
Max pull:11,080 lbs
5025 kg
Gear 2-I used for pull test.
