Minneapolis-Moline 335
|
|
| Production | |
| Manufacturer | Minneapolis-Moline |
| Row-Crop tractor | |
| Built in Minneapolis, Minnesota, USA | |
| Total built | 2,500 (utility) |
| 334 (industrial) | |
| 750 (Universal) | |
| Original price was $2,500 in 1961 | |
| Minneapolis-Moline 335 Engine | |
| Minneapolis-Moline 2.7L 4-cyl gasoline | |
| Fuel tank | 14 gal 53.0 L |
 Engine details ... | |
| Minneapolis-Moline 335 Transmissions | |
| 5-speed unsynchronized gear | |
| 10-speed two-speed power shift | |
 Transmission details ... |
| Minneapolis-Moline 335 Power | |
| Engine | 40 hp 29.8 kW |
| Drawbar (claimed) | 30 hp 22.4 kW |
| PTO (claimed) | 35 hp 26.1 kW |
| Drawbar (tested) | 29.84 hp 22.3 kW |
| Belt (tested) | 33.50 hp 25.0 kW |
 Performance test details ... | |
| Mechanical | |
| Two-wheel drive | |
| Final drives | bull gear |
| Power steering | |
| Mechanical dry disc brakes | |
| Open operator station. | |
| Hydraulics | |
| Type | open center |
| Pump flow | 10 gpm 37.9 lpm |
| Steering flow | 2.5 gpm 9.5 lpm |
| Tractor hitch | |
| Rear Type | I OptOptional |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | wet disc |
| Rear PTO Type | 540 (1.375) |
| Dimensions & Tires | |
| Wheelbase | 78.25 inches (tricycle) 198 cm |
| 79 inches (utility) 200 cm | |
| Weight | 3070 to 3268 pounds |
| Front tire | 5.50-16 |
| Rear tire | 12.4-36 |
 Full dimensions and tires ... | |

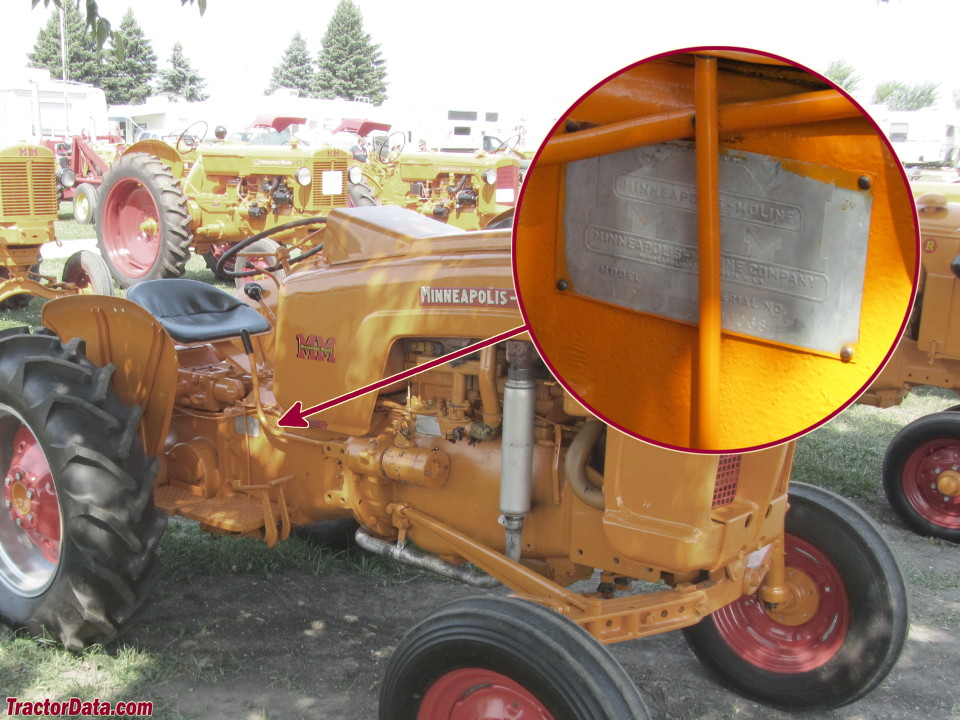

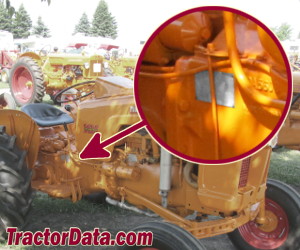

| 335 Serial Number Location | |
 | |
| Right side of tractor frame. |
| 335 Serial Numbers | |
| 1956 | A1P 10400001 (utility) |
| 1957 | A1P 10400102 (utility) |
| 1958 | A1P 10402088 (utility) |
| 1959 | A1P 10402337 (utility) |
| 1960 | A1P 10402490 (utility) |
| 1961 | A1P 10402490 (utility) |
| 1957 | A1W 11300001 (industrial) |
| 1958 | A1W 11300441 (industrial) |
| 1959 | A1W 11300522 (industrial) |
| 1960 | A1W 11300597 (industrial) |
| 1957 | A1 11600001 (universal) |
| 1958 | A1 11600302 (universal) |
| 1959 | A1 11600306 (universal) |
FAQ: How to read a serial number table. | |
| Belt Pulley | |
| Diameter | 8.375 inches 21 cm |
| Width | 6.5 inches 16 cm |
| RPM | 1516 |
| Speed | 3323 ft/min 1012.85 meters/min |
| Electrical | |
| Charging system | generator |
| Battery volts | 6 |
| References | |
 | |
| 335 Universal published by Minneapolis-Moline | |
| 335 Utility published by Minneapolis-Moline |
