Minneapolis-Moline U-302
|
|
| Production | |
| Manufacturer | Minneapolis-Moline |
| Row-Crop tractor | |
| Built in Minneapolis, Minnesota, USA | |
| Original price was $6,000 in 1970 | |
| Variants | |
| U-302U | tricycle |
| U-302E | wide front |
| U-302N | single-front |
| Minneapolis-Moline U-302 Engines | |
| Minneapolis-Moline 3.6L 4-cyl gasoline | |
| Minneapolis-Moline 3.6L 4-cyl LP gas | |
| Minneapolis-Moline 3.9L 4-cyl diesel | |
| Gas Fuel tank | 22.5 gal 85.2 L |
| LP-gas Fuel tank | 31 gal 117.3 L |
 Engine details ... | |
| Minneapolis-Moline U-302 Transmission | |
| 10-speed two-speed power shift | |
 Transmission details ... |
| Minneapolis-Moline U-302 Power | |
| Gas PTO (claimed) | 55.8 hp 41.6 kW |
| LP-gas PTO (claimed) | 55.7 hp 41.5 kW |
| Diesel PTO (claimed) | 52 hp 38.8 kW |
| Plows | 4 |
| Drawbar (tested) | 48.41 hp 36.1 kW |
| PTO (tested) | 55.82 hp 41.6 kW |
 Performance test details ... | |
| Mechanical | |
| Two-wheel drive | |
| Power steering | |
| Disc brakes | |
| Open operator station. |
| Tractor hitch | |
| Rear Type | II/I OptOptional |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| 1000 (1.375)OptOptional | |
| Engine RPM | 540@1525 |
| 1000@1750 | |
| Dimensions & Tires | |
| Wheelbase | 84.1 inches 213 cm |
| Weight | 5500 lbs 2494 kg |
| Front tire | 5.50-16 |
| Rear tire | 13.6-24 |
 Full dimensions and tires ... | |

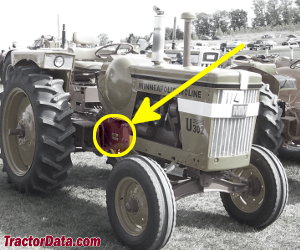

| U-302 Serial Number Location | |
 | |

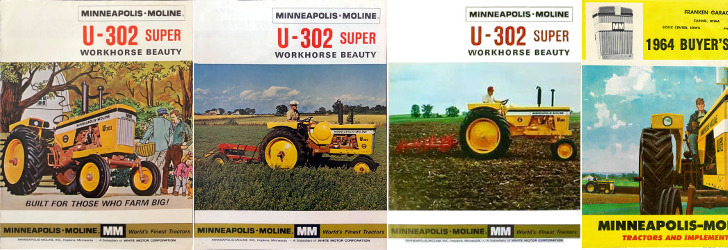

| References | |
 | |
| U-302 Super published in 1966, by Minneapolis-Moline | |
| U-302 Super published in 1967, by Minneapolis-Moline | |
| U-302 Super published in 1968, by Minneapolis-Moline | |
| Buyer's Guide published in 1964, by Minneapolis-Moline |
