Challenger 85E Tests

Challenger 85E tractor photo
1998 - 2001
Agricultural Crawler tractor
Series map:
OCED Tractor Test 1750

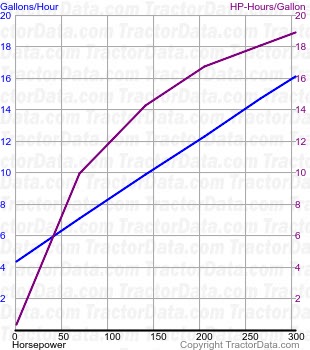

85E fuel use from test 226
OCED Tractor Test 1750
Diesel 10-speed crawler
May 13 - June 2, 1998
Link: OCED Tractor Test 1750 file
PTO performance
Max power335.70 hp
250.3 kW
Fuel use16.6 gal/hour
62.8 l/hour
Power at rated engine speed303.25 hp
226.1 kW
Fuel use16.1 gal/hour
60.9 l/hour
Power at rated PTO speed305.58 hp
227.9 kW
Fuel use16.0 gal/hour
60.6 l/hour
Drawbar performance
Max power296.50 hp
221.1 kW
Fuel use17.6 gal/hour
66.6 l/hour
Gear 3 used for power test.
Max pull34,070 lbs
15454 kg
Gear 1 used for pull test.
