Challenger 75E Tests

Challenger 75E tractor photo
1998 - 2001
Agricultural Crawler tractor
Series map:
OCED Tractor Test 1749
Diesel 10-speed crawler
May 5 - June 2, 1998
Link: OCED Tractor Test 1749 file

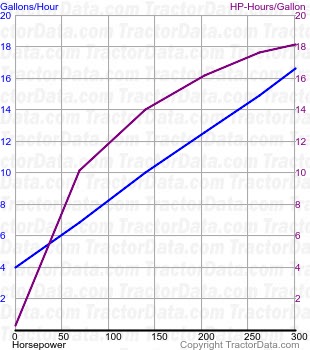

PTO performance
Max power331.09 hp
246.9 kW
Fuel use17.7 gal/hour
67.0 l/hour
Power at rated engine speed300.69 hp
224.2 kW
Fuel use16.6 gal/hour
62.8 l/hour
Power at rated PTO speed309.60 hp
230.9 kW
Fuel use17.0 gal/hour
64.3 l/hour
Drawbar performance
Max power263.38 hp
196.4 kW
Fuel use16.5 gal/hour
62.5 l/hour
Gear 3 used for power test.
Max pull33,452 lbs
15173 kg
Gear 1 used for pull test.
