Challenger 85D Tests


Challenger 85D tractor photo
1996 - 1997
Agricultural Crawler tractor
Series map:
75D
85D
330.0hp
370.0hp
OCED Tractor Test 1723

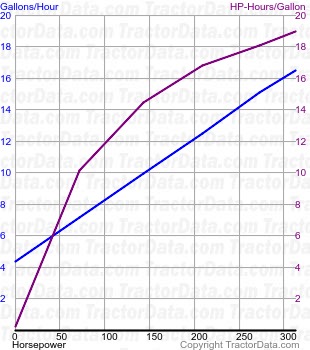

85D fuel use from test 223
OCED Tractor Test 1723
Diesel 10-speed crawler
April 9 - 16, 1997
Link: OCED Tractor Test 1723 file
PTO performance
Max power334.95 hp
249.8 kW
Fuel use17.1 gal/hour
64.7 l/hour
Power at rated engine speed312.46 hp
233.0 kW
Fuel use16.5 gal/hour
62.5 l/hour
Power at rated PTO speed318.59 hp
237.6 kW
Fuel use16.6 gal/hour
62.8 l/hour
Drawbar performance
Max power271.64 hp
202.6 kW
Fuel use16.3 gal/hour
61.7 l/hour
Gear 3 used for power test.
Max pull35,299 lbs
16011 kg
Gear 1 used for pull test.
