Challenger 85D Engine

Challenger 85D tractor photo
1996 - 1997
Agricultural Crawler tractor
Series map:
Engine Detail
Caterpillar 3196 ATAAC
turbocharged intercooled diesel
Displacement729 ci
11.9 L
Bore/Stroke5.118x5.906 inches
130 x 150 mm
Power (gross)370 hp
275.9 kW
Air cleanerdual paper elements with aspirator
Pre-heatingether injection
 block heater
Rated RPM2100
Starter volts12
Oil capacity32 qts
30.3 L
Coolant capacity80 qts
75.7 L
Challenger 85D Engine

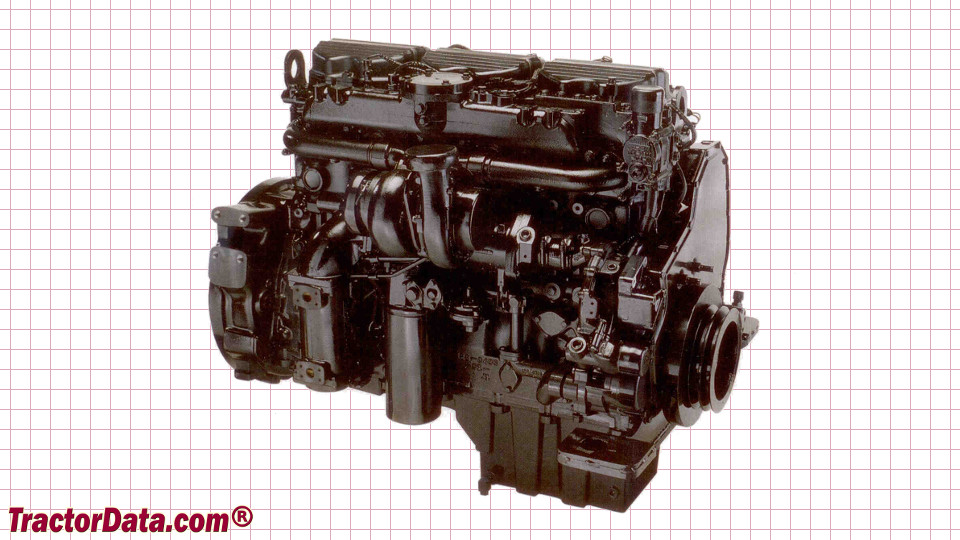

Challenger 85D engine image
