Challenger 75D Engine


Challenger 75D tractor photo
1996 - 1997
Agricultural Crawler tractor
Series map:
65D
75D
85D
300.0hp
330.0hp
370.0hp
Engine Detail
Caterpillar 3176C ATAAC
turbocharged intercooled diesel
6-cylinder
liquid-cooled
Displacement629 ci
10.3 L
Bore/Stroke4.92x5.51 inches
125 x 140 mm
Power (gross)330 hp
246.1 kW
Air cleanerdual paper elements with aspirator
Pre-heatingether injection
 block heater
Rated RPM2100
Starter volts12
Oil capacity32 qts
30.3 L
Coolant capacity60 qts
56.8 L

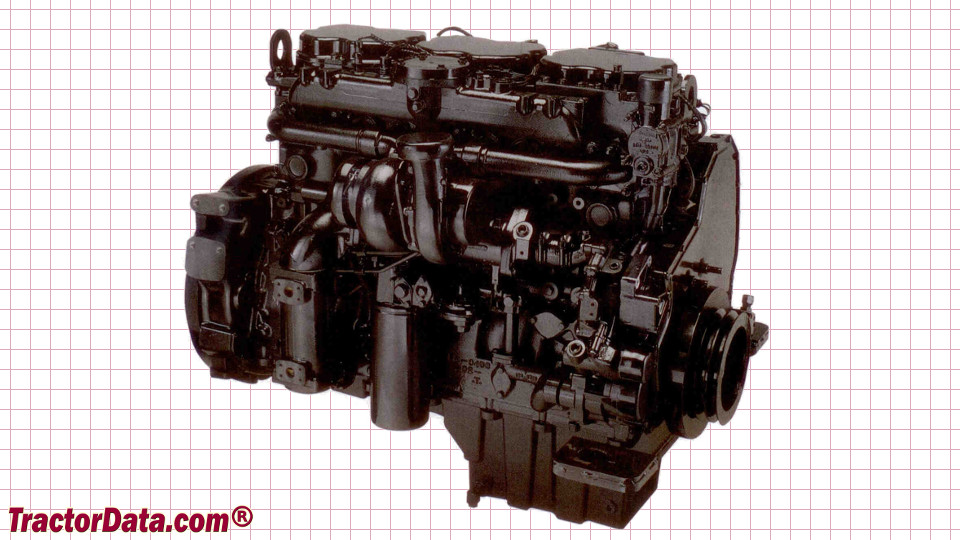

Challenger 75D Engine
Challenger 75D engine image
