Massey Ferguson 1250

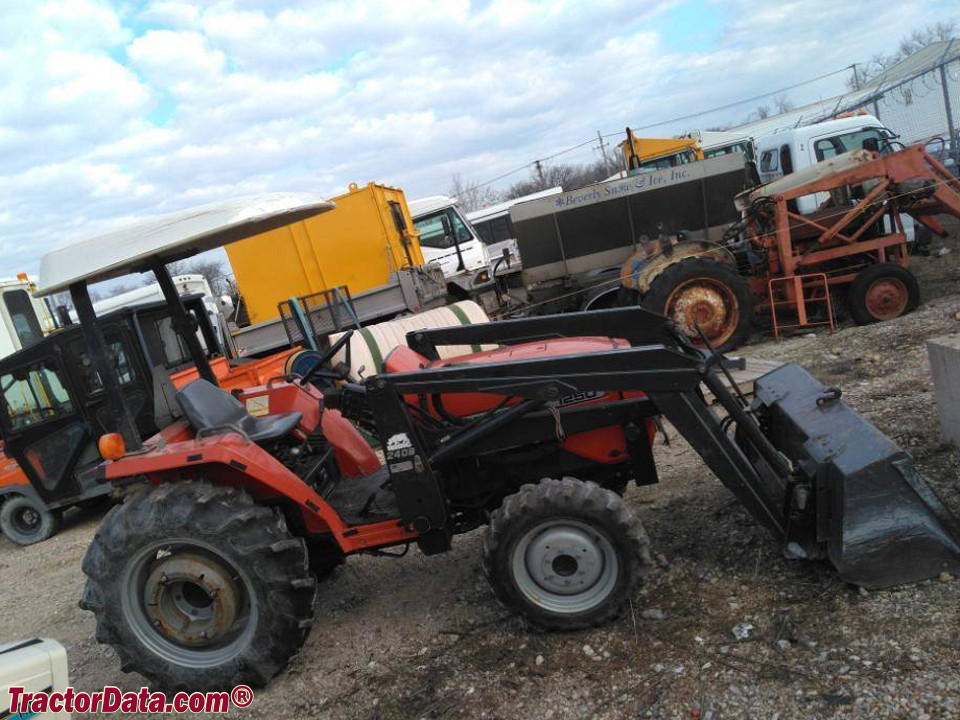

Massey Ferguson 1250 tractor photo
1992 - 2002
1200 Compact Series
Compact Utility tractor
Iseki built
Series map:
1240
1250
1260
28.4hp
33.0hp
40.0hp
Production
DistributorMassey Ferguson
ManufacturerIseki
Compact Utility tractor
Original price was $16,000 in 1999
Massey Ferguson 1250 Engine
Iseki 1.5L 3-cyl diesel
Engine details ...
Massey Ferguson 1250 Transmission
16-speed synchro shuttle
Transmission details ...
Massey Ferguson 1250 Power
Engine (gross)33 hp
24.6 kW
Engine (net)31.6 hp
23.6 kW
PTO (claimed)27.3 hp
20.4 kW
Mechanical
Two- or four-wheel drive
Steeringpower assist
Wet disc brakes
Two-post folding ROPS.
Photos
Massey Ferguson 1250
Massey Ferguson 1250 photos...
Capacity
Fuel7.9 gal
29.9 L
Hydraulic system6.6 gal
25.0 L
Hydraulics
Typeopen center
Capacity6.6 gal
25.0 L
Pressure2133 psi
147.1 bar
Pump flow6.3 gpm
23.8 lpm
Total flow9.6 gpm
36.3 lpm
Tractor hitch
Rear TypeI
Controlposition control
Rear lift (at ends)2866 lbs
1300 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic
Rear PTO Type540 (1.375)
Engine RPM540@2389
Mid PTOindependent OptOptional
Clutchelectro-hydraulic
Mid PTO Type1960
Engine RPM1960@2600
Dimensions & Tires
Wheelbase67.9 inches
172 cm
Weight2690 to 2746 pounds
Front tire5.50-16
2WD Rear tire12.4-24
Full dimensions and tires ...
Massey Ferguson 1250 attachments
72" mid-mount mower deck
snowblower
blade
front-end loader
backhoe
Attachment details ...
1250 Serial Numbers
1992A00001
1993B00001
1994C00001
1995D00001
1996E00001
1997FF00001
1998GF00001
1999HF00001
2000JF00001
2001KF00001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps40
Battery CCA622
Battery volts12
References
1250 references literature
MF Loaders for Compact & Agricultural Tractors published in 2003, by Massey Ferguson
MF 1200 Series Tractors published in 1993, by Massey Ferguson
MF 1200 Series published in 1997, by Massey Ferguson
MF 1250-2/4WD tractor published by Massey Ferguson
