| | 1992 - 2002 |
| 1200 Compact Series | | Compact Utility tractor | | Iseki built |
|
Series map:
1240
1250
1260
28.4hp
33.0hp
40.0hp
| Transmission |
| Type | synchro shuttle
|
| Gears | 16 forward and reverse
|
| Clutch | 225mm dry disc
|
| Four gears in four ranges with shuttle. Synchronized shifts between gears 3 and 4. |

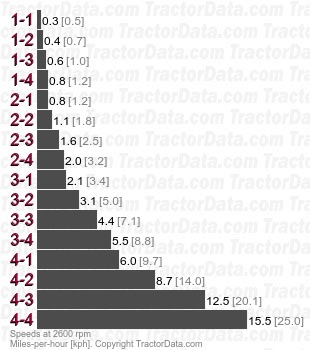

| Speeds |
| With 12.4-24 rear tires. Reverse speeds are 5% slower than forward. |
|

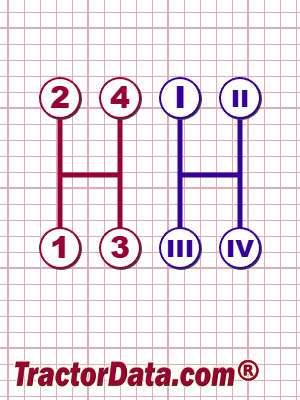

| Shift Pattern |
 |
