New Holland 8340 Engine

New Holland 8340 tractor photo
1996 - 1997
PowerStar 40 Series
Row-Crop tractor
Series map:
*Estimated engine power for comparison only.

Note: the New Holland model 8340 is the same as the Ford 8340. The following data is from the 8340 listing.
Engine Detail
Ford Genesis
turbocharged diesel
6-cylinder 12-valve
Displacement456 ci
7.5 L
Bore/Stroke4.40x5.00 inches
112 x 127 mm
Rated RPM2100
Idle RPM725-2275
Firing order1-5-3-6-2-4
Starter volts12
Coolant capacity21.1 qts
20.0 L
 22.7 qts (cab)
21.5 L
Intake valve clearance0.016 inches (cold)
0.406 mm
Exhaust valve clearance0.019 inches (cold)
0.483 mm
Engine Oil

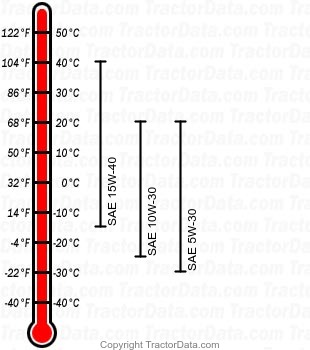

8340 diesel engine oil chart
Oil capacity22.1 qts
20.9 L
