New Holland 8340 Transmission


New Holland 8340 tractor photo
1996 - 1997
PowerStar 40 Series
Row-Crop tractor
8340
Series:82408340

Note: the New Holland model 8340 is the same as the Ford 8340. The following data is from the 8340 listing.
Transmissions overview
12-speed synchronized
16-speed four-speed power shift
Transmission
Transmission:SynchroShift
Type:synchronized
Gears:12 forward and reverse
Clutch:dry disc
Four gears (1-4) in three ranges (L/M/H) with right-hand shuttle lever. Gear shifts are synchronized. Shifts between medium and high ranges are synchronized, but the tractor should be stopped to shift to or from low range. Sychronized shuttle shifting. The 12-speed SynchroShift was standard on the 8340 SL.
Speeds
With 16.9-38 rear tires.
8340 SynchroShift synchronized speeds
Transmission
Transmission:ElectroShift/Pulse Command
Type:four-speed power shift
Gears:16 forward and reverse
Clutch:wet disc
Oil capacity:64 qts
60.6 L
Four power shift gears arranged in two synchronized ratio groups (1-4 and 5-8). Two synchronized ranges (low/high) and right-hand shuttle. Clutch must be used to shift range or move between the lower (1-4) and higher (5-8) gear ratio groups. Push-button power shifting between the four gears in a ratio group. Push-button de-clutching on the shuttle lever allow shifting without the foot clutch. The 16 power shift was standard on the 8340 SLE.

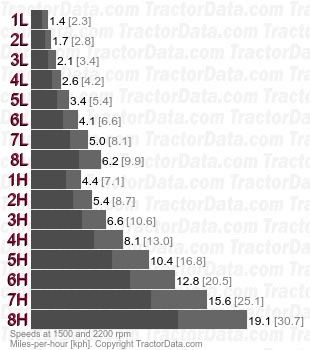

Speeds
With 16.9-38 rear tires.
8340 ElectroShift/Pulse Command four-speed power shift speeds
