Tractors > Ford > 8340

Ford 8340 Engine



Ford 8340 tractor photo
1992 - 1995
PowerStar 40 Series
Row-Crop tractor
Series map:
8240
8340
106.7hp*
117.8hp*
*Estimated engine power for comparison only.
Engine Detail
Ford Genesis
turbocharged diesel
6-cylinder 12-valve
liquid-cooled
Displacement456 ci
7.5 L
Bore/Stroke4.40x5.00 inches
112 x 127 mm
Compression17.5:1
Rated RPM2100
Idle RPM725-2275
Firing order1-5-3-6-2-4
Starter volts12
Coolant capacity21.1 qts
20.0 L
 22.7 qts (cab)
21.5 L
Intake valve clearance0.016 inches (cold)
0.406 mm
Exhaust valve clearance0.019 inches (cold)
0.483 mm
Engine Oil

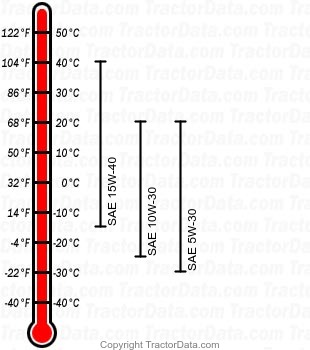

8340 diesel engine oil chart
Oil capacity22.1 qts
20.9 L
