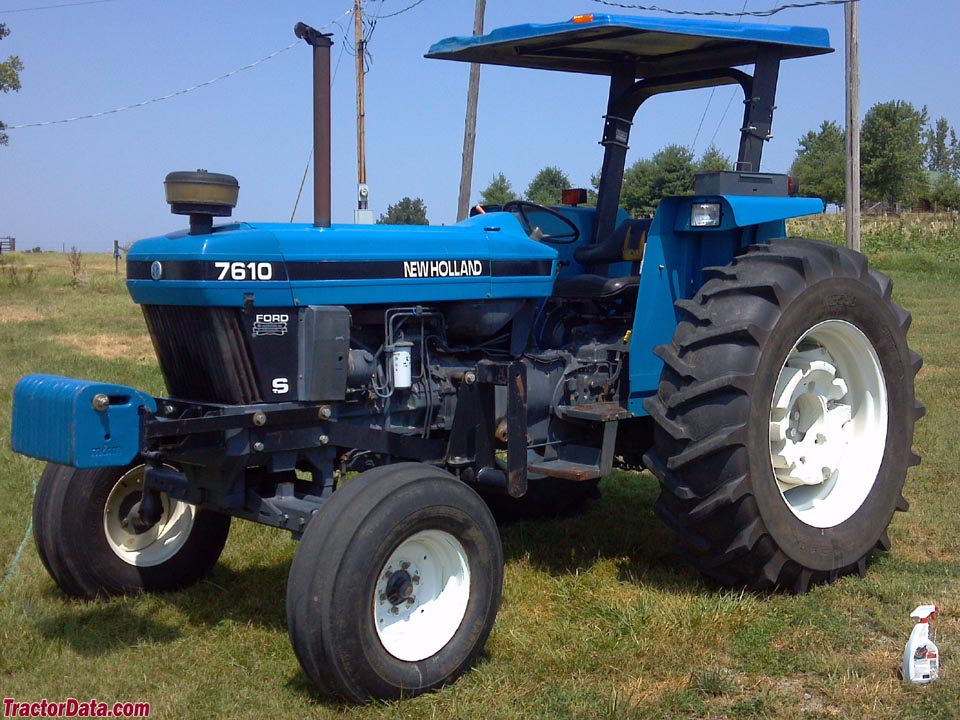

New Holland 7610S
| | 1994 - 2003 |
| 10S Series | | Utility tractor |
|
Note: the New Holland model 7610S is the same as the Ford 7610S. The following data is from the 7610S listing. |
| Production |
| Manufacturer: | New Holland
|
| Type: | Utility tractor
|
| Factory: | Queretaro, Mexico
|
| Original price: | $31,500 (2000)
|
| New Holland 7610S Power |
| Engine: | 95 hp
70.8 kW
|
| PTO (claimed): | 86 hp
64.1 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | wet disc
|
| Cab: | Two-post ROPS.
|
| Transmissions: | 8-speed unsynchronized gear
|
| | 16-speed two-speed power shift
|
 Transmission details ... |
| Capacity |
| Fuel: | 21.5 gal
81.4 L
|
| | 13.2 gal
50.0 L (aux. tank)
|
| Steering: | 2.3 qts
2.2 L
|
| Hydraulics |
| Type: | gear pump
|
| Pressure: | 2500 psi
172.4 bar
|
| Valves: | 2
|
| Pump flow: | 9.7 gpm
36.7 lpm
|
| Steering flow: | 9.6 gpm
36.3 lpm
|
| Steering cap.: | 2.3 qts
2.2 L
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | position control with top-link draft sensing
|
| Rear lift: | 4040 lbs
1832 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Engine RPM: | 540@1900
1000@2060
|
| 7610S Serial Numbers |
| 1994: | 25000
|
| 1995: | 251435
|
| 1996: | 252558
|
| 1997: | 253609
|
| 1998: | 255857
|
| 1999: | 258109
|
| 2000: | 259472
|
| 2001: | 260543
|
| 2002: | 261969
|
| 2003: | 263610
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 55
|
| Charging volts: | 12
|
| Battery volts: | 12
|
