New Holland 6610S

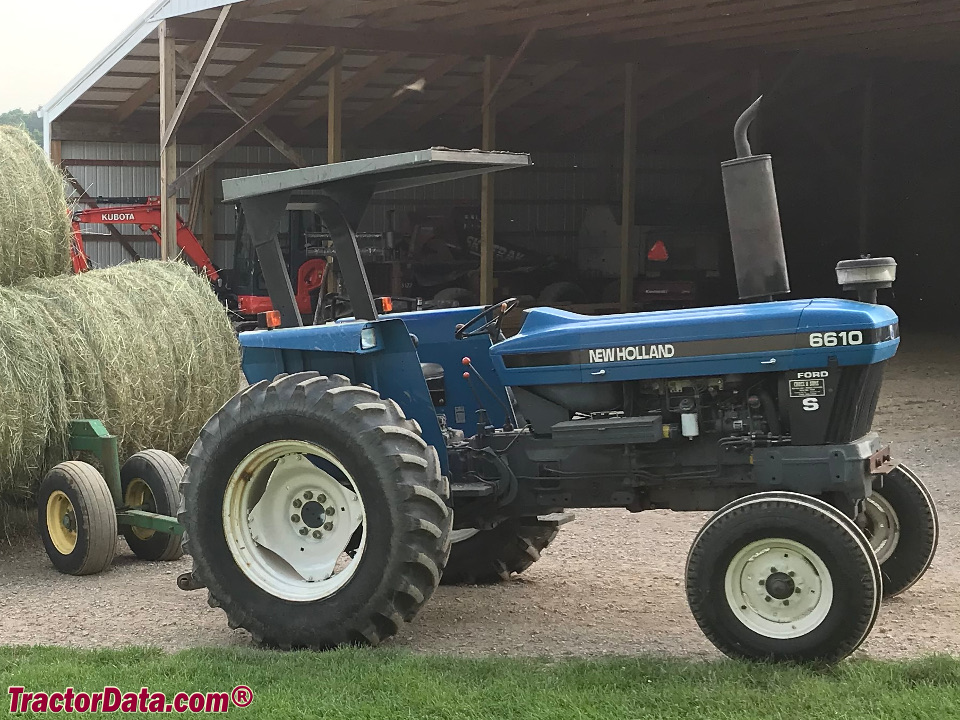

New Holland 6610S tractor photo
1994 - 2003
10S Series
Utility tractor
Series map:
5610S
6610S
7610S
75.0hp
85.0hp
95.0hp

Note: the New Holland model 6610S is the same as the Ford 6610S. The following data is from the 6610S listing.
Production
ManufacturerNew Holland
Utility tractor
Built in Queretaro, Mexico
Original price was $28,500 in 2000
New Holland 6610S Power
Engine85 hp
63.4 kW
PTO (claimed)76 hp
56.7 kW
Mechanical
Two- or four-wheel drive
Power steering
Wet disc brakes
Two-post ROPS.
Capacity
Fuel21.5 gal
81.4 L
 13.2 gal (aux. tank)
50.0 L
Steering2.3 qts
2.2 L
Hydraulics
Typegear pump
Pressure2500 psi
172.4 bar
Valves2
Pump flow9.7 gpm
36.7 lpm
Steering flow9.6 gpm
36.3 lpm
Steering cap.2.3 qts
2.2 L
Tractor hitch
Rear TypeII
Controlposition control with top-link draft sensing
Rear lift4040 lbs
1832 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540
Engine RPM540@1900
Dimensions & Tires
2WD Wheelbase87.5 inches
222 cm
4WD Wheelbase88.8 inches
225 cm
Weight5695 to 6335 pounds
Front tire7.50-16
Rear tire16.9-30
Full dimensions and tires ...
6610S Serial Numbers
Location:Serial number decal inside the hood panel.
1994ZX35000
1995351863M
1996353483M
1997354758M
1998358416M
1999361105M
2000363210M
2001365619M
2002368034M
2003371020M

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps55
Charging volts12
Battery volts12
References
6610S references literature
10S Series 66 to 90 PTO hp Tractors published in 1995, by Ford
Operator's Manual 5610S, 6610S and 7610S Tractors (82981440) published in 1998
Product Manual 5610S, 6610S, 7610S and 7810S published in 1997, by New Holland
