Tractors > J.I. Case > 1370

J.I. Case 1370 Tests



J.I. Case 1370 tractor photo
1971 - 1978
Series map:
1270
1370
141.1hp*
158.3hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 1102: diesel (2100 rpm) 12-speed 2WD
NTTL 1148: diesel (2200 rpm) 12-speed 2WD
Nebraska Tractor Test 1102

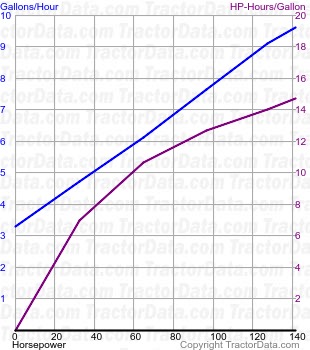

1370 fuel use from test 1102
Nebraska Tractor Test 1102
Diesel (2100 rpm) 12-speed 2WD
June 10 - 19, 1972
Link: Nebraska Tractor Test 1102 file
PTO performance
Power at rated engine speed142.51 hp
106.3 kW
Fuel use9.6 gal/hour
36.3 l/hour
Power at rated PTO speed143.64 hp
107.1 kW
Fuel use9.3 gal/hour
35.2 l/hour
Drawbar performance
Max power120.97 hp
90.2 kW
Fuel use9.5 gal/hour
36.0 l/hour
Gear 3-Lo used for power test.
Max pull16,609 lbs
7533 kg
Gear 1-Int used for pull test.
Nebraska Tractor Test 1148

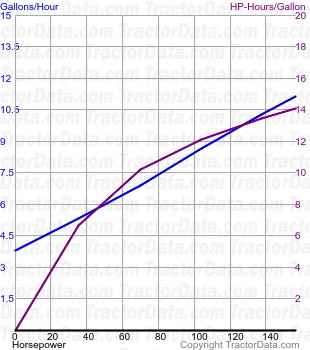

1370 fuel use from test 1148
Nebraska Tractor Test 1148
Diesel (2200 rpm) 12-speed 2WD
October 31 - November 7, 1973
Link: Nebraska Tractor Test 1148 file
PTO performance
Power at rated engine speed155.56 hp
116.0 kW
Fuel use11.1 gal/hour
42.0 l/hour
Power at rated PTO speed156.32 hp
116.6 kW
Fuel use10.4 gal/hour
39.4 l/hour
Drawbar performance
Max power130.9 hp
97.6 kW
Fuel use10.9 gal/hour
41.3 l/hour
Gear 3-Lo used for power test.
Max pull16,480 lbs
7475 kg
Gear 1-Int used for pull test.
