J.I. Case 1470 Traction King Tests



J.I. Case 1470 Traction King tractor photo
1969 - 1972
Four-wheel Drive (4WD) tractor
Series map:
1470
161.1hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1006

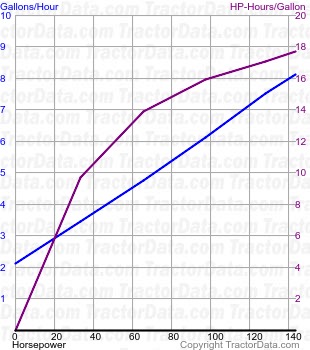

1470 Traction King fuel use from test 1006
Nebraska Tractor Test 1006
Diesel 8-speed 4WD
April 15 - 23, 1969
Link: Nebraska Tractor Test 1006 file
PTO performance
Power at rated engine speed144.89 hp
108.0 kW
Fuel use8.2 gal/hour
31.0 l/hour
Drawbar performance
Max power126.86 hp
94.6 kW
Fuel use8.0 gal/hour
30.3 l/hour
Gear 4 used for power test.
Max pull17,742 lbs
8047 kg
Gear 1 used for pull test.
