Tractors > J.I. Case > 2470 Traction King

J.I. Case 2470 Traction King Tests



J.I. Case 2470 Traction King tractor photo
1972 - 1979
Four-wheel Drive (4WD) tractor
Series map:
2470
2670
213.0hp
256.0hp
Nebraska Tractor Test 1114

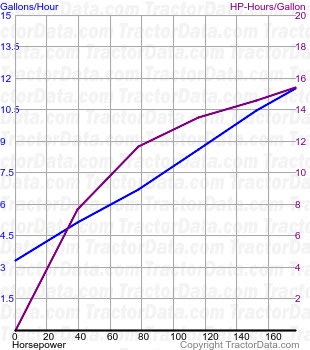

2470 Traction King fuel use from test 1114
Nebraska Tractor Test 1114
Diesel 12-speed 4WD
October 25 - 31, 1972
Link: Nebraska Tractor Test 1114 file
PTO performance
Power at rated engine speed174.20 hp
129.9 kW
Fuel use11.4 gal/hour
43.1 l/hour
Drawbar performance
Max power150.52 hp
112.2 kW
Fuel use11.3 gal/hour
42.8 l/hour
Gear 3-2 used for power test.
Max pull18,050 lbs
8187 kg
Gear 2-1 used for pull test.
