J.I. Case 1200 Traction King Tests



J.I. Case 1200 Traction King tractor photo
1966 - 1969
Four-wheel Drive (4WD) tractor
Series map:
1200
133.3hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 868

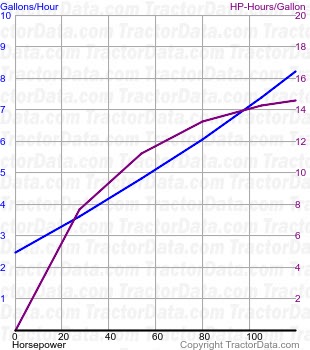

1200 Traction King fuel use from test 868
Nebraska Tractor Test 868
Diesel 6-speed 4WD
October 14 - 23, 1964
Link: Nebraska Tractor Test 868 file
PTO performance
Power at rated engine speed119.90 hp
89.4 kW
Fuel use8.2 gal/hour
31.0 l/hour
Drawbar performance
Max power106.20 hp
79.2 kW
Fuel use8.2 gal/hour
31.0 l/hour
Gear 3 used for power test.
Max pull15,860 lbs
7194 kg
Gear 1 used for pull test.
