J.I. Case 940
|
|
| Production | |
| Manufacturer | J.I. Case |
| Standard-tread tractor | |
| Built in Racine, Wisconsin, USA | |
| Original price | $6,400 (1969) |
| The 930 Comfort King (930 CK) was introduced in 1962. The entire series was referred to as the Case 930, although the spark-ignition versions used the 940 model number. | |
| J.I. Case 940 Engines | |
| J.I. Case 6.2L 6-cyl gasoline | |
| J.I. Case 6.2L 6-cyl LP gas | |
| Fuel tank | 30 gal (gas) 113.6 L |
| 36 gal (LP-gas) 136.3 L | |
| 48 gal (CK) 181.7 L | |
 Engine details ... | |
| J.I. Case 940 Transmission | |
| 6-speed gear | |
 Transmission details ... |
| J.I. Case 940 Power | |
| Belt (claimed) | 83 hp 61.9 kW |
| Plows | 6 |
| Drawbar (tested) | 69.99 hp 52.2 kW |
| PTO (tested) | 79.64 hp 59.4 kW |
 Performance test details ... | |
| Mechanical | |
| Two-wheel drive | |
| Steering | power assist |
| Differential mechanical dry disc brakes | |
| Open operator station. | |

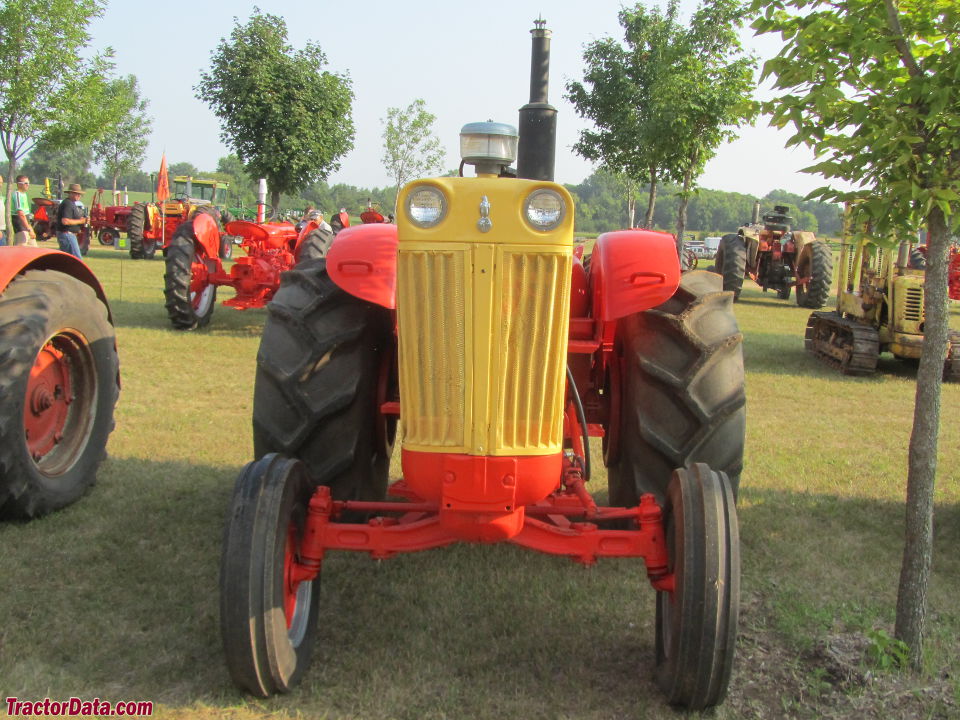

| Photos | |
 | |
 J.I. Case 940 photos... | |
| Hydraulics | |
| Type | Dual-Control |
| Valves | 1 or 2 |
| Pump flow | 15 gpm 56.8 lpm |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/1000 (1.375) |
| Dimensions & Tires | |
| Wheelbase | 84 inches 213 cm |
| Weight | 8,755 lbs 3971 kg |
| Front tire | 7.50-18 |
| Rear tire | 15x34 |
 Full dimensions and tires ... | |
| 940 Serial Number Location | |
 | |
| Plate on instrument panel |
| 940 Serial Numbers | |
| 1960 | 8160001 |
| 1961 | 8168801 |
| 1962 | 8190001 |
| 1963 | 8208001 |
| 1964 | 8229001 |
| 1965 | 8253501 |
| 1966 | 8279001 |
| 1967 | 8306501 |
FAQ: How to read a serial number table. | |
| Belt Pulley | |
| Diameter | 11.75 inches 29 cm |
| Width | 8.25 inches 20 cm |
| RPM | 1007 |
| References | |
 | |
| 1960 Progress Parade of Case Farm Equipment published by J.I. Case | |
| A Complete New Line of Case Plus-Powered Tractors published in 1960, by J.I. Case | |
| 1965 Buyers Guide published by J.I. Case | |
| Buyers Guide for '67 published in 1967, by J.I. Case |
