Tractors > J.I. Case > 940

J.I. Case 940 Tests



J.I. Case 940 tractor photo
1960 - 1967
30 Series
Standard-tread tractor
Nebraska Tractor Test 739

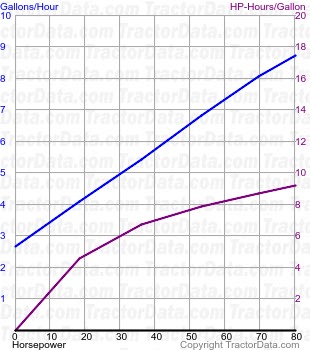

940 fuel use from test 739
Nebraska Tractor Test 739
LP gas 6-speed 2WD
April 5 - 23, 1960
Link: Nebraska Tractor Test 739 file
PTO performance
Power at rated engine speed79.64 hp
59.4 kW
Fuel use8.7 gal/hour
32.9 l/hour
Power at rated PTO speed74.60 hp
55.6 kW
Fuel use8.0 gal/hour
30.3 l/hour
Drawbar performance
Max power69.99 hp
52.2 kW
Fuel use8.5 gal/hour
32.2 l/hour
Gear 3 used for power test.
Max pull11016 lbs
4996 kg
Gear 1 used for pull test.
