J.I. Case 211-B
|
|
| Production | |
| Manufacturer | J.I. Case |
| Row-Crop tractor | |
| Built in Rock Island, Illinois, USA | |
| Total built | 1,641 |
| Original price was $2,500 in 1960 | |
| J.I. Case 211-B Engine | |
| J.I. Case 2.1L 4-cyl gasoline | |
| Fuel tank | 13 gal 49.2 L |
 Engine details ... | |
| J.I. Case 211-B Transmissions | |
| 4-speed gear | |
| 12-speed gear | |
 Transmission details ... |
| J.I. Case 211-B Power | |
| Drawbar (claimed) | 25 hp 18.6 kW |
| PTO (claimed) | 30 hp 22.4 kW |
| Plows | 2 |
| Drawbar (tested) | 24.84 hp 18.5 kW |
| PTO (tested) | 30.84 hp 23.0 kW |
 Performance test details ... | |
| Mechanical | |
| Two-wheel drive | |
| Steering | power assist |
| Differential mechanical disc brakes | |
| Open operator station. | |
| Photos | |
 | |
 J.I. Case 211-B photos... | |
| Power Take-off (PTO) | |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 533@1750 |
| Dimensions & Tires | |
| Wheelbase | 79.5 inches 201 cm |
| Weight | 3655 lbs 1657 kg |
| Front tire | 5.00-15 |
| Rear tire | 10-28 |
 Full dimensions and tires ... | |
| J.I. Case 211-B attachments | |
| front-end loader | |
 Attachment details ... |

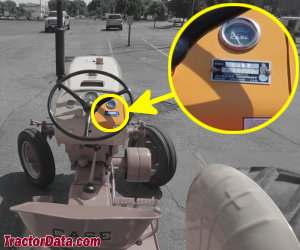

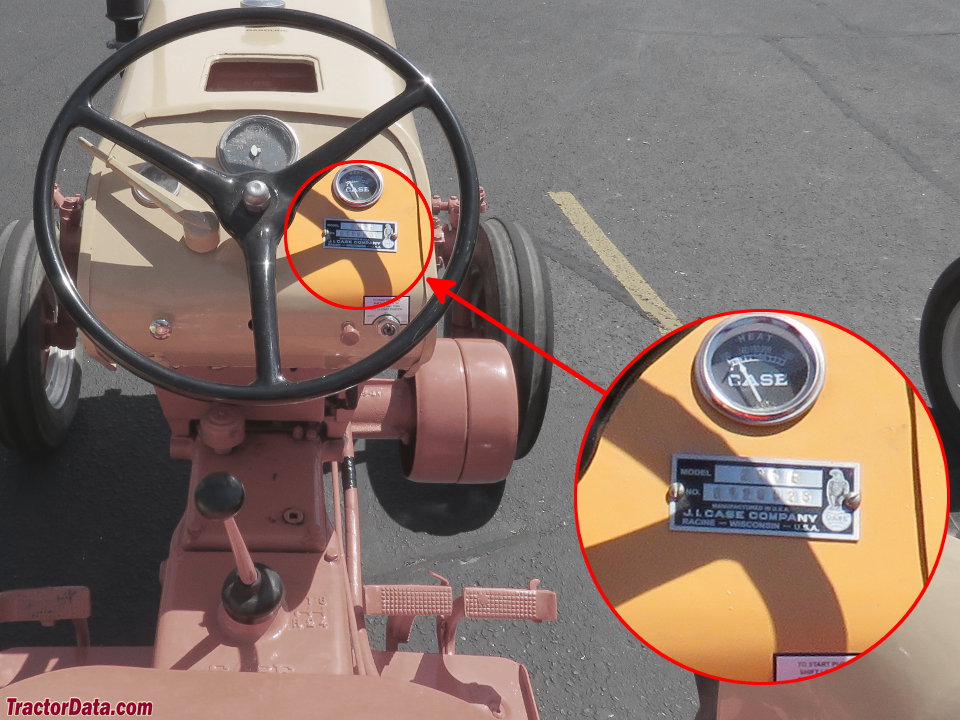

| 211-B Serial Number Location | |
 | |
| Serial number plate on dashboard. |
| Electrical | |
| Ground | positive |
| Charging system | generator |
| Battery volts | 6 |
| Battery AH | 100 |
| References | |
 | |
| Operator's Instruction Manual 200B Series Wheel Tractors (9-462) published in 1958 | |
| J.I. Case presents published in 1957 |
