International Harvester 1086
| | 1976 - 1981 |
| 86 Series | | Row-Crop tractor |
|
Series map:
Hydro 186
1086
1486
115.6hp*
144.4hp*
162.2hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | International Harvester
|
| Row-Crop tractor |
| Built in Rock Island, Illinois, USA |
| Total built | 47,420
|
| Original price | $35,700 (1981)
|
| Variants |
| 1086 Hi-Clear | high clearance
|
| International Harvester 1086 Power |
| Drawbar (claimed) | 114 hp
85.0 kW
|
| PTO (claimed) | 130 hp
96.9 kW
|
| Drawbar (tested) | 113.04 hp
84.3 kW
|
| PTO (tested) | 131.41 hp
98.0 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Final drives | bull gear
|
| Differential lock | mechanical rear OptOptional
|
| Steering | power assist
|
| Hydraulic disc brakes |
| Cab standard with air-conditioning. Open operator station and four-post ROPS available. |
| Capacity |
| Fuel | 63 gal (main)
238.5 L
|
| | 22 gal (auxilary)
83.3 L
|
| Hydraulic system | 22.5 gal
85.2 L
|
| Hydraulics |
| Type | open center
|
| | closed center *Optional after late 1980.
|
| Capacity | 22.5 gal
85.2 L
|
| Valves | 2
|
| Pump flow | 12 gpm
45.4 lpm
|
| Tractor hitch |
| Rear Type | III
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540/1000 (1.375)
|
| Engine RPM | 540@2100
|
| | 1000@2100
|
| Dimensions & Tires |
| Wheelbase | 105 inches (wide-tread front)
266 cm
|
| | 101 inches (tricycle front)
256 cm
|
| | 99 inches (4WD)
251 cm
|
| | 106 inches (Hi-Clear)
269 cm
|
| Weight | 12300 to 13030 pounds
|
| Front tire | 10.00-16
|
| Rear tire | 18.4-38
|
 Full dimensions and tires ... |

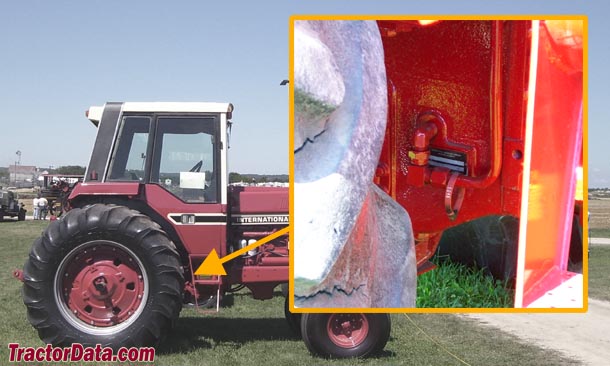

| 1086 Serial Number Location |
 |
| Frame, right side ahead of the rear axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 42
|
| | 61 (with cab)
|
| Batteries | 2
|
| Battery CCA | 470
|
| Battery volts | 12
|
| References |
 |
| 1978 Buyer's Guide published by International Harvester |
| 1979 Buyer's Guide published by International Harvester |
| Buyer's Guide 1981 published by International Harvester |
| Series 86 Tractors published in 1976, by International Harvester |
| 86 Series Tractors - The pro-ag line published in 1976, by International Harvester |
| Operator's Manual 786, 886, 986, 1086, 1486, 1586 and Hydro-186 Tractors (1096207R4) published in 1986 |
