International Harvester 1086 Transmission


International Harvester 1086 tractor photo
1976 - 1981
86 Series
Row-Crop tractor
Series map:
Hydro 186
1086
1486
116.7hp*
146.0hp*
162.2hp*
*Estimated engine power for comparison only.
Transmission options
8-speed gear
16-speed two-speed power shift
Transmission
Typegear
Gears8 forward and 4 reverse
Oil capacity90 qts
85.2 L
The transmission features three ranges (low, high, and reverse) with four gears (1-4) in each range. The range and gear can be shifted only when the tractor is stopped.
Speeds
With 18.4-38 rear tires.

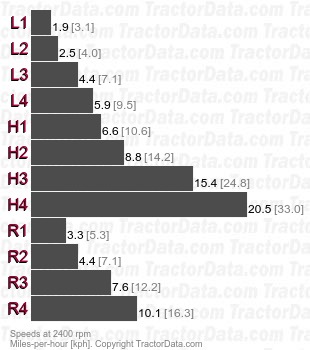

1086  gear speeds
Transmission
TransmissionTorque Amplifier
Typetwo-speed power shift
Gears16 forward and 8 reverse
Oil capacity90 qts
85.2 L
Oil type
IH Hy-Tran/B-6
The transmission features three ranges (low, high, and reverse) with four gears (1-4) in each range. The Torque Amplifier (TA) provides an additional high/low selection for each speed. The range and gear can be shifted only when the tractor is stopped. The TA can be shifted while the tractor is in motion.
Speeds
With 18.4-38 rear tires.

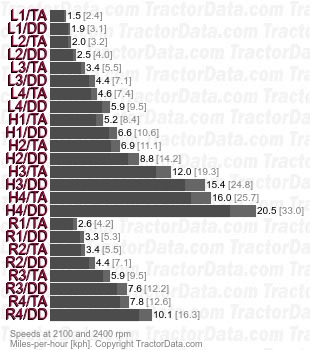

1086 Torque Amplifier two-speed power shift speeds
