International Harvester 483

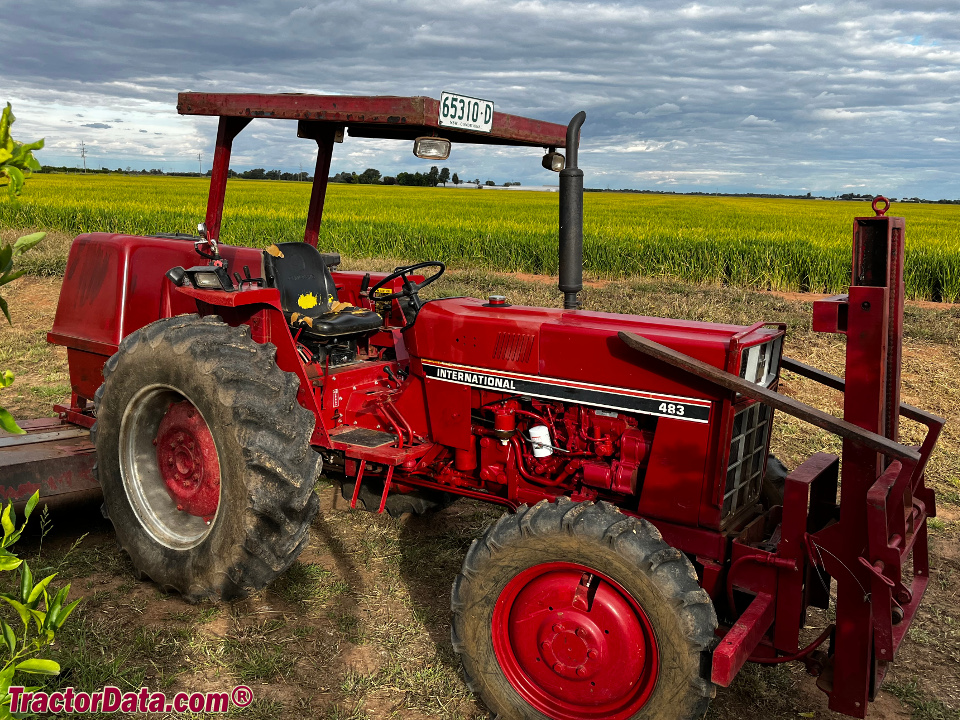

International Harvester 483 tractor photo
1982 - 1984
Utility tractor
Komatsu built
Series map:
383
483
40.0hp
46.0hp
Production
DistributorInternational Harvester
ManufacturerKomatsu
Utility tractor
Built in Japan
Original price was $13,900 in 1984
International Harvester 483 Power
Engine46 hp
34.3 kW
PTO (claimed)42 hp
31.3 kW
Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
ROPS and canopy optional
Capacity
Fuel15.1 gal
57.2 L
Hydraulic system8.5 gal
32.2 L
Hydraulics
Capacity8.5 gal
32.2 L
Pressure2500 psi
172.4 bar
Total flow6.4 gpm
24.2 lpm
Tractor hitch
Rear TypeI/II
Rear lift (at ends)3307 lbs
1500 kg
Power Take-off (PTO)
Rear PTOindependent
Rear RPM540
Dimensions & Tires
Wheelbase76.8 inches
195 cm
Weight3550 to 3991 pounds
Front tire6.00-16
2WD Rear tire13.6/12-28
Full dimensions and tires ...
Electrical
Charging systemalternator
Charging amps35
Battery volts12
References
483 references literature
New International 483 Tractor published by International Harvester
New International Tractors 383 483 published in 1983, by International Harvester
