Tractors > International Harvester > Cub

International Harvester Cub



International Harvester Cub tractor photo
1964 - 1979
Series map:
Cub
13.0hp
Production
ManufacturerInternational Harvester
Built in Louisville, Kentucky, USA
The International Cub's PTO ran counter-clockwise ("backwards") and at full engine speed, making it incompatible with standard PTO-driven equipment. In 1975 the "Increased Power" New International Cub was released.
International Harvester Cub Engine
International Harvester 1.0L 4-cyl gasoline
Engine details ...
International Harvester Cub Transmission
3-speed sliding gear
Transmission details ...
International Harvester Cub Power
Engine13 hp
9.7 kW
Drawbar (claimed)10 hp
7.5 kW
PTO (claimed)11 hp
8.2 kW
Plows1 (12 inch)
Mechanical
Two-wheel drive
Steeringmanual
Differential mechanical drum brakes
Open operator station.
Photos

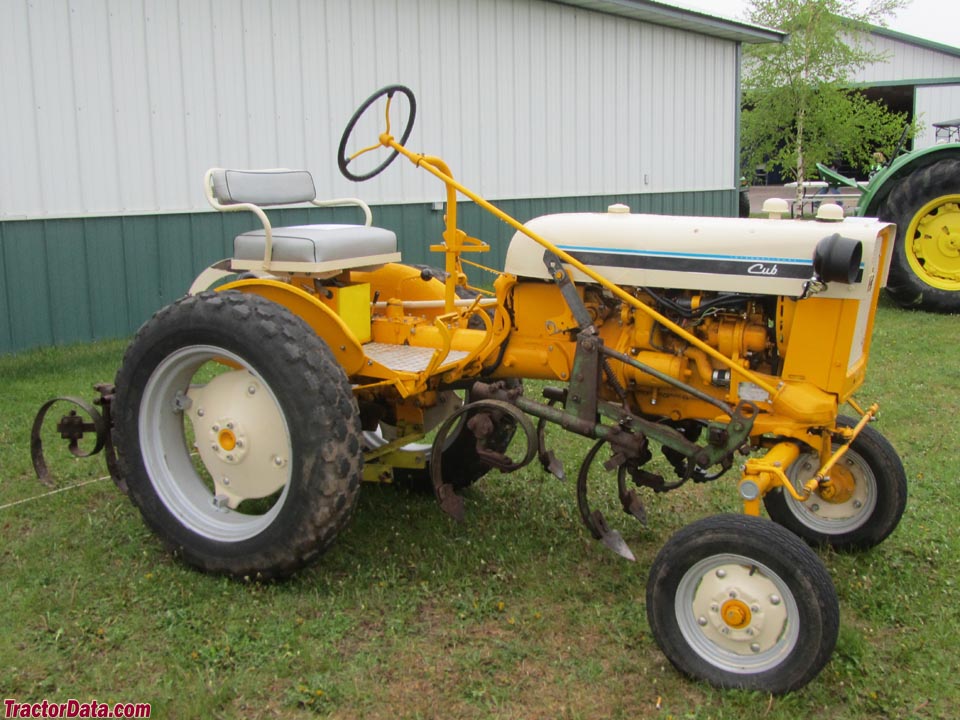

1965 yellow International Cub with mounted cultivators.
International Harvester Cub photos...
Capacity
Fuel7.5 gal
28.4 L
Hydraulic system0.56 gal
2.1 L
Hydraulics
Capacity0.56 gal
2.1 L
Pressure1200 psi
82.7 bar
Total flow2.8 gpm
10.6 lpm
Tractor hitch
TypeIH Fast Hitch OptOptional
Power Take-off (PTO)
Rear PTOindependent
Rear PTO TypeCub-10 (0.9375)
Engine RPM-1800@1800
Dimensions & Tires
Wheelbase69.25 inches
175 cm
Weight1477 to 1877 pounds
Front tire4.00-12
Rear tire8-24
Full dimensions and tires ...
International Harvester Cub attachments
42" mower deck
60" mid-mount mower deck
blade
front-end loader
Attachment details ...
Cub Serial Number Location
International Harvester Cub serial number location

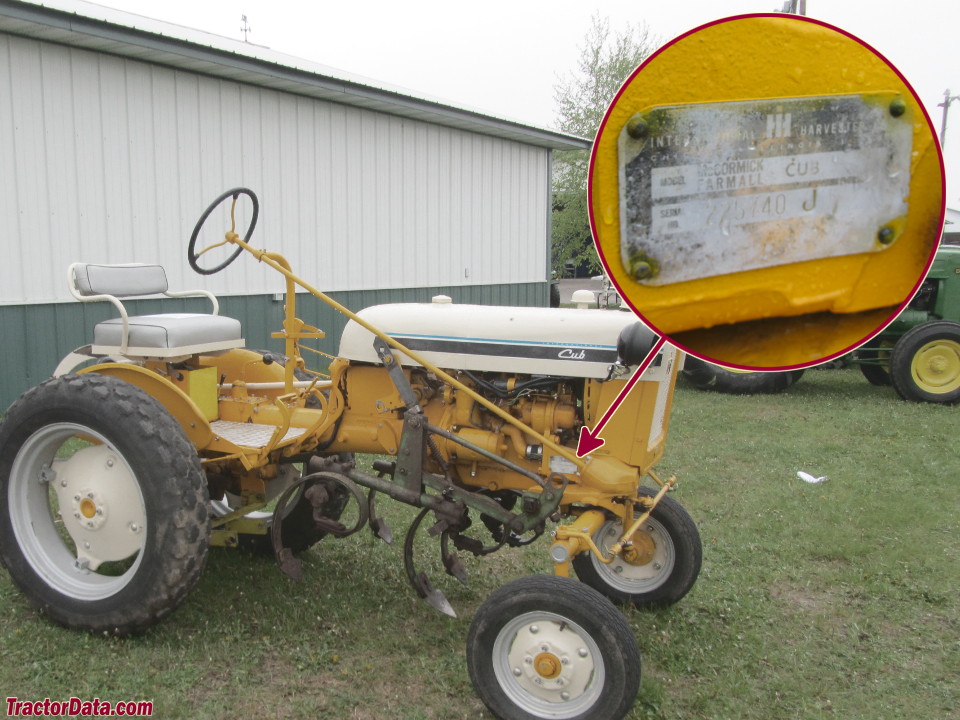

Serial number plate on the right side of the Farmall Cub, above the front axle.
Cub Serial Numbers
1964224704
1965225110
1966227209
1967229225
1968231005
1969232981
1970234868
1971236827
1972238506
1973240581
1974242746
1975245651
Final248124
1975248125
1976248618
1977250832
1978252109
1979253136
Final253685

FAQ: How to read a serial number table.
Links
FarmallCub.com: Information, photos, and a message board
Electrical
Groundnegative
Charging systemgenerator
 alternator (sn 248125)
Battery volts12
References
Cub references literature
Original Farmall Cub and Cub Cadet by Kenneth Updike
A Complete Reference to International Power Lawn Products published in 1977, by International Harvester
Buyer's Guide 1974 published by International Harvester
Farm Loaders published in 1965, by International Harvester
Farm Loaders published in 1970, by International Harvester
Spring 1968 Buyer's Guide published by International Harvester
Summer-Fall 1968 Buyer's Guide published by International Harvester
Spring 1969 Buyer's Guide published by International Harvester
Spring 1970 Buyer's Guide published by International Harvester
Spring 1971 Buyer's Guide published by International Harvester
1979 Buyer's Guide published by International Harvester
Cub Lo-Boy and Cub Tractors published in 1966, by International Harvester
Cub manuals literature
International Cub and Cub Lo-Boy Tractors (1 014 031 R3) published in 1959
International Cub and Cub Lo-Boy Tractors (1 014 488 R4) published in 1965
International Cub and Cub Lo-Boy Tractors (1 014 488 R8) published in 1975
