International Harvester Cub Engine



International Harvester Cub tractor photo
1964 - 1979
Series map:
Cub
13.0hp
Engine Detail
International Harvester C60
gasoline
4-cylinder
liquid thermosyphon-cooled
Displacement59.5 ci
1.0 L
Bore/Stroke2.625x2.75 inches
67 x 70 mm
Power13 hp
9.7 kW
Air cleaneroil bath
Compression6.5:1
Rated RPM1800
Firing order1-3-4-2
Starter volts12
Coolant capacity9.75 qts
9.2 L
SparkplugChampion D-21
 AC C86
Sparkplug gap0.023 inches
0.584 mm
Intake valve clearance0.013 inches (cold)
0.330 mm
Exhaust valve clearance0.013 inches (cold)
0.330 mm
Engine Oil

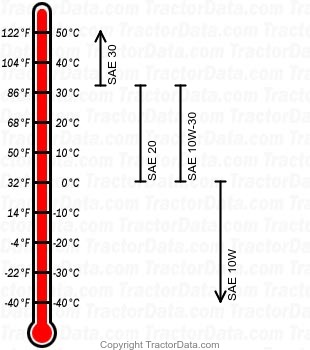

Cub gasoline engine oil chart
Oil capacity3 qts
2.8 L
Oil change120 h
