Ford 4000
| | 1962 - 1975 |
|
| Utility tractor |
|
Series map:
2000
4000
48.4hp
62.5hp
| Production |
| Manufacturer | Ford
|
| Utility tractor |
| Built in Highland Park, Michigan, USA |
| The four-cylinder (1962-1965) Ford 4000 series tractors were nearly identical to the 801 and 901 series tractors. |
| Ford 4000 Power |
| Engine (gross) | 62.5 hp
46.6 kW
|
| Drawbar (claimed) | 37.8 hp
28.2 kW
|
| PTO (claimed) | 43.5 hp
32.4 kW
|
| Plows | 4
|
| Mechanical |
| Two-wheel drive |
| Utility Steering | manual
|
| Row-crop Steering | power
|
| Open operator station. |
| Hydraulics |
| Type | open center
|
| Pump flow | 5.4 gpm
20.4 lpm
|
| Tractor hitch |
| Rear Type | I,II
|
| Rear lift (at ends) | 2360 lbs
1070 kg
|
| Power Take-off (PTO) |
| Rear PTO | tranmission
|
| | live *Optional, available with the five-speed transmission.
|
| | independent *Independent PTO available with the Select-O-Speed transmission.
|
| Rear PTO Type | 540
|
| | 540/1000 OptOptional
|

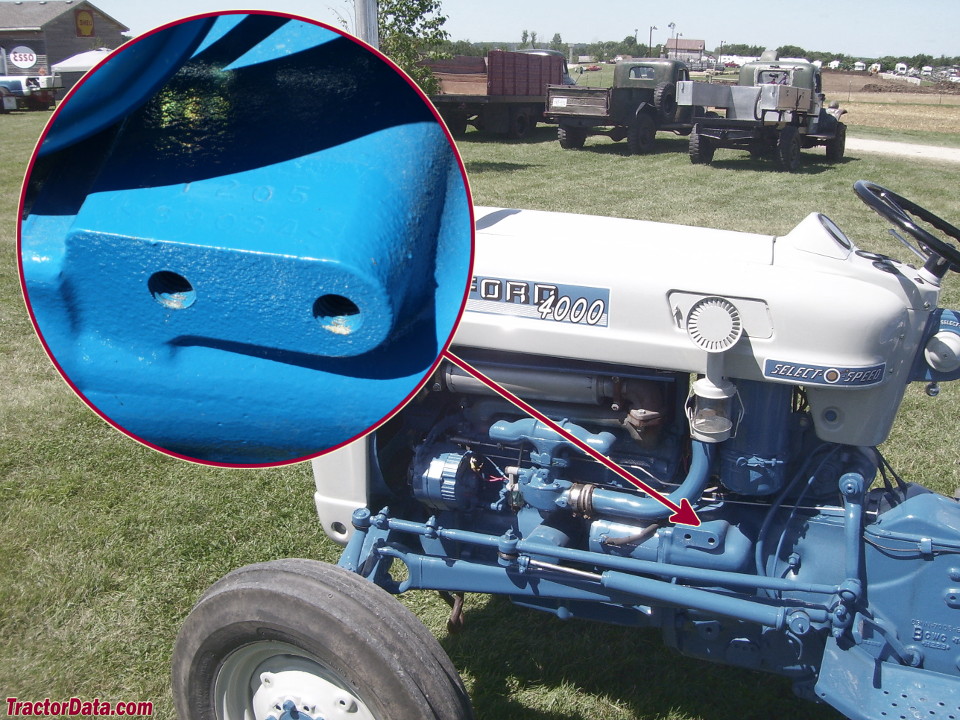

| 4000 Serial Number Location |
 |
| Serial number stamped into the starter mounting flange on the left side of the tractor. |
| Electrical |
| Charging system | generator
|
| Gas Battery volts | 6
|
| Diesel Battery volts | 12
|
| References |
 |
| Industrial Tractors and Equipment published in 1964, by Ford |
| Ford 4000 published in 1962 |
| 4000 and 2000 published in 1962, by Ford |
