Ford 1710



Ford 1710 tractor photo
1983 - 1986
Ten Compact Series
Compact Utility tractor
Shibaura built
Series map:
1510
1710
1910
22.0hp
26.0hp
32.0hp
Production
DistributorFord
ManufacturerShibaura
Compact Utility tractor
Built in Japan
Original price was $8,859 in 1986
Variants
1710 Offsetcultivating tractor
Ford 1710 Engine
Shibaura 1.4L 3-cyl diesel
Engine details ...
Ford 1710 Transmissions
12-speed unsynchronized gear
12-speed partially synchronized
Transmission details ...
Ford 1710 Power
Engine (net)26 hp
19.4 kW
PTO (claimed)23.5 hp
17.5 kW
Drawbar (tested)20.48 hp
15.3 kW
PTO (tested)23.88 hp
17.8 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Final drivesspur gear
Differential lockmechanical rear
2WD Steeringmanual
4WD ((Optional with two-wheel drive.)) Steeringpower
Differential mechanical drum brakes
Two-post fixed ROPS.
Photos

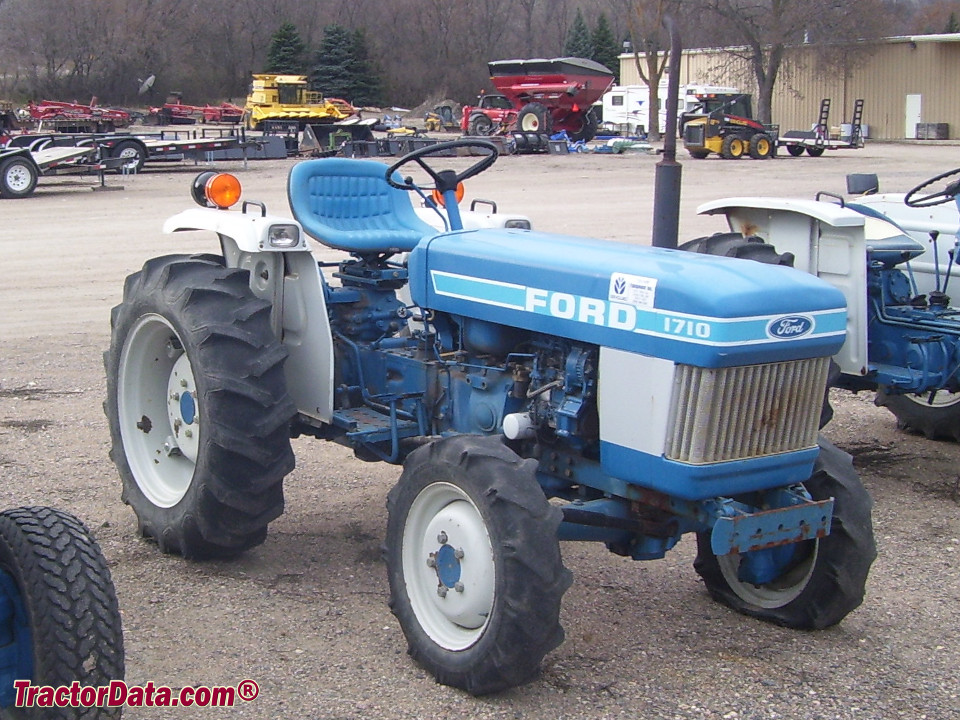

Ford 1710 compact utility tractor, right side.
Ford 1710 photos...
Capacity
Fuel7.7 gal
29.1 L
Hydraulic system4.75 gal
18.0 L
Hydraulics
Typeopen center
Capacity4.75 gal
18.0 L
Pressure2130 psi
146.9 bar
Total flow7.8 gpm
29.5 lpm
Tractor hitch
Rear TypeI
Rear lift (at 24"/610mm)1575 lbs
714 kg
Power Take-off (PTO)
Rear PTOtransmission
 live OptOptional
Rear PTO Type540 (1.375)
Engine RPM540@2420
Dimensions & Tires
Wheelbase63 inches
160 cm
Weight2425 to 2690 pounds
Front tire5.00-15
2WD Rear tire11.2-24
Full dimensions and tires ...
Ford 1710 attachments
60" mid-mount mower deck
snowblower
front-end loader
backhoe
Attachment details ...
1710 Serial Number Location
Ford 1710 serial number location
Serial number plate on the left side of the Ford 1710, near the clutch pedal.
1710 Serial Numbers
1983UL00001
1984UL03489
1985UL07985
1986UL13798

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps35
Charging volts12
Battery volts12
Battery AH72
References
1710 references literature
Ford Shop Manual by Peter Letourneau
Farm Loaders published in 1988, by Ford
1000 Series Tractors published in 1985, by Ford
1000 Series Tractors published in 1987, by Ford
Salesman's Reference published in 1986, by Ford
Repair Manual 1010 Series Tractors (SE 4301) published in 1986
Sales Reference Guide published in 1986, by Ford
