Allis Chalmers 7010 Tests


Allis Chalmers 7010 tractor photo
1980 - 1981
7000 Series
Row-Crop tractor
Series map:
7010
7020
118.4hp*
146.0hp
Tractor Tests
NTTL 1345: diesel 20-speed 2WD
NTTL 1346: diesel 12-speed 2WD
Nebraska Tractor Test 1345

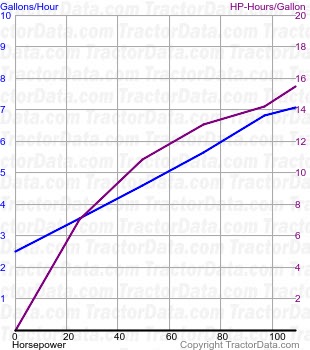

7010 fuel use from test 1345
Nebraska Tractor Test 1345
Diesel 20-speed 2WD
May 1 - 13, 1980
Link: Nebraska Tractor Test 1345 file
PTO performance
Power at rated engine speed106.53 hp
79.4 kW
Fuel use7.0 gal/hour
26.5 l/hour
Power at rated PTO speed107.52 hp
80.2 kW
Fuel use6.9 gal/hour
26.1 l/hour
Drawbar performance
Max power87.83 hp
65.5 kW
Fuel use7.0 gal/hour
26.5 l/hour
Gear 5SL used for power test.
Max pull9,426 lbs
4275 kg
Gear 1FL used for pull test.
Nebraska Tractor Test 1346

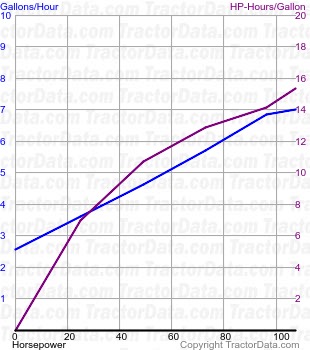

7010 fuel use from test 1346
Nebraska Tractor Test 1346
Diesel 12-speed 2WD
May 2 - 14, 1980
Link: Nebraska Tractor Test 1346 file
PTO performance
Power at rated engine speed106.72 hp
79.6 kW
Fuel use7.0 gal/hour
26.5 l/hour
Power at rated PTO speed106.33 hp
79.3 kW
Fuel use6.9 gal/hour
26.1 l/hour
Drawbar performance
Max power89.10 hp
66.4 kW
Fuel use7.2 gal/hour
27.3 l/hour
Gear 2F used for power test.
Max pull9,516 lbs
4316 kg
Gear 3S used for pull test.
