| | 1970 - 1981 |
| Row-Crop tractor |
|
Series map:
175
185
69.4hp*
83.2hp*
*Estimated engine power for comparison only.
| Engine Detail |
| Allis-Chalmers |
| diesel |
| 6-cylinder |
| liquid-cooled |
| Displacement | 301 ci
4.9 L
|
| Bore/Stroke | 3.875x4.25 inches
98 x 108 mm
|
| Compression | 16.25:1
|
| Rated RPM | 2200
|
| Firing order | 1-5-3-6-2-4
|
| Starter volts | 12
|
| Oil capacity | 11 qts
10.4 L
|
| Coolant capacity | 17 qts
16.1 L
|

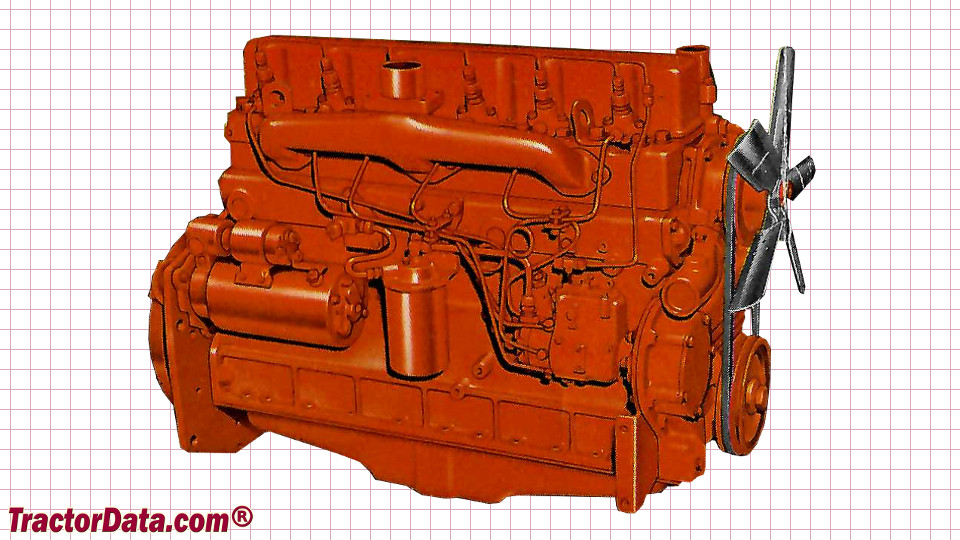

| Allis Chalmers 185 Engine |
 |
