Tractors > John Deere > 8960

John Deere 8960 Tests



John Deere 8960 tractor photo
1989 - 1993
8060 Series
Four-wheel Drive (4WD) tractor
Series map:
8760
8960
300.0hp
370.0hp
Tractor Tests
OECD 1625: diesel Powrsync 4WD
OECD 1632: diesel Power Shift 4WD
OCED Tractor Test 1625

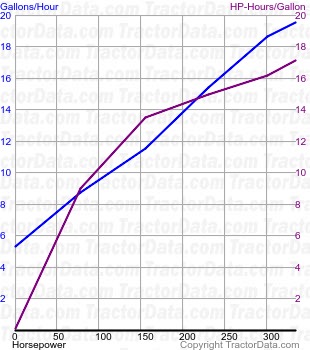

8960 fuel use from test 063
OCED Tractor Test 1625
Diesel Powrsync 4WD
May 1 - June 1, 1989
Link: OCED Tractor Test 1625 file
PTO performance
Max power335.34 hp
250.1 kW
Fuel use19.2 gal/hour
72.7 l/hour
Power at rated engine speed333.40 hp
248.6 kW
Fuel use19.5 gal/hour
73.8 l/hour
Drawbar performance
Max power308.26 hp
229.9 kW
Fuel use19.2 gal/hour
72.7 l/hour
Max pull34,462 lbs
15631 kg
OCED Tractor Test 1632

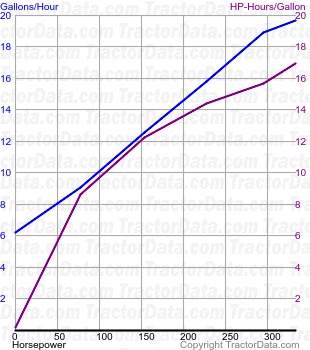

8960 fuel use from test 070
OCED Tractor Test 1632
Diesel Power Shift 4WD
September 1 - October 1, 1989
Link: OCED Tractor Test 1632 file
PTO performance
Max power337.42 hp
251.6 kW
Fuel use19.3 gal/hour
73.1 l/hour
Power at rated engine speed332.25 hp
247.8 kW
Fuel use19.6 gal/hour
74.2 l/hour
Drawbar performance
Max power302.04 hp
225.2 kW
Fuel use19.5 gal/hour
73.8 l/hour
Gear 6 used for power test.
Max pull34,913 lbs
15836 kg
Gear 1 used for pull test.
