Tractors > John Deere > 4255

John Deere 4255 Engine



John Deere 4255 tractor photo
1988 - 1992
4055 Series
Row-Crop tractor
Series map:
4055
4255
4455
126.1hp
142.2hp
156.9hp
Engine Detail
John Deere
turbocharged diesel
6-cylinder
liquid-cooled inline
Displacement466 ci
7.6 L
Bore/Stroke4.5625x4.75 inches
116 x 121 mm
Power (net)142.2 hp
106.0 kW
Fuel systemdirect injection
Air cleanerdual paper elements
Compression16:1
Rated RPM2200
Idle RPM800-2400
Operating RPM1500-2200
Firing order1-5-3-6-2-4
Starter volts12
Coolant capacity27 qts
25.6 L
Intake valve clearance0.020 inches
0.508 mm
Exhaust valve clearance0.020 inches
0.508 mm

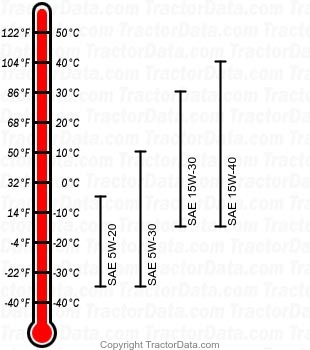

Engine Oil
4255 diesel engine oil chart
Oil capacity19 qts
18.0 L
