Tractors > John Deere > 8630

John Deere 8630 Tests



John Deere 8630 tractor photo
1975 - 1978
Generation II Series
Four-wheel Drive (4WD) tractor
Series map:
8430
8630
194.4hp*
275.0hp
Nebraska Tractor Test 1180

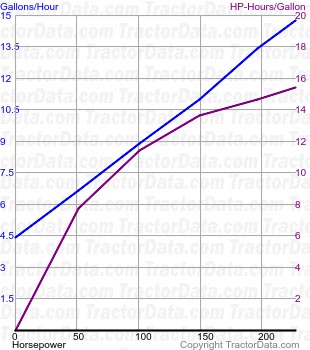

8630 fuel use from test 1180
Nebraska Tractor Test 1180
Diesel Quad-Range 4WD
June 3 - 11, 1975
Link: Nebraska Tractor Test 1180 file
PTO performance
Power at rated engine speed225.59 hp
168.2 kW
Fuel use15.3 gal/hour
57.9 l/hour
Drawbar performance
Max power198.12 hp
147.7 kW
Fuel use13.7 gal/hour
51.9 l/hour
Max pull26,443 lbs
11994 kg
