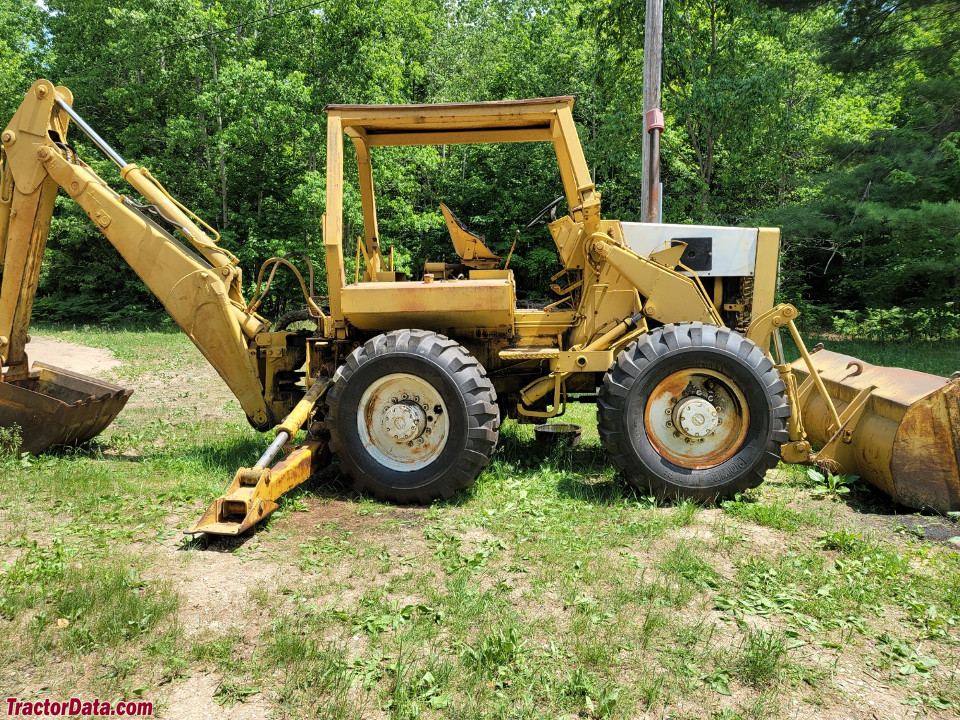

International Harvester 3820
|
|
| Production | |
| Manufacturer | International Harvester |
| Backhoe loader tractor | |
| Built in Louisville, Kentucky, USA | |
| Total built | 601 |
| International Harvester 3820 Engine | |
| International Harvester 5.1L 6-cyl diesel | |
 Engine details ... |
| International Harvester 3820 Transmission | |
| 2-speed full power shift | |
 Transmission details ... |
| International Harvester 3820 Power | |
| Engine (gross) | 101 hp 75.3 kW |
| Engine (net) | 84 hp 62.6 kW |
| Mechanical | |
| Drive | 4x4 4WD |
| Final drives | planetary |
| Steering | hydrostatic power |
| Hydraulic brakes | |
| Open operator station. Four-post ROPS and cab available. | |
| Capacity | |
| Fuel | 31 gal 117.3 L |
| Hydraulic system | 54.5 gal 206.3 L |
| Hydraulics | |
| Capacity | 54.5 gal 206.3 L |
| Pressure | 2400 psi 165.5 bar |
| Pump flow | 32 gpm (main) 121.1 lpm |
| 13.5 gpm (secondary) 51.1 lpm | |
| 45.5 gpm (backhoe) 172.2 lpm | |
| Steering flow | 9 gpm 34.1 lpm |
| Dimensions & Tires | |
| Wheelbase | 77 inches 195 cm |
| Weight | 15000 to 19500 pounds |
| Front tire | 15.5-25 |
| Rear tire | 15.5-25 |
 Full dimensions and tires ... | |
| Backhoe & Loader | |
| Dig depth | 195.5 inches 496 cm |
| Dump angle | 45 inches 114 cm |
 Loader/Backhoe details ... | |
| References | |
 | |
| Buyer's Guide 1974 published by International Harvester | |
| Buyer's Guide 1975 published by International Harvester | |
| Buyer's Guide 1976 published by International Harvester |
