Kubota L45

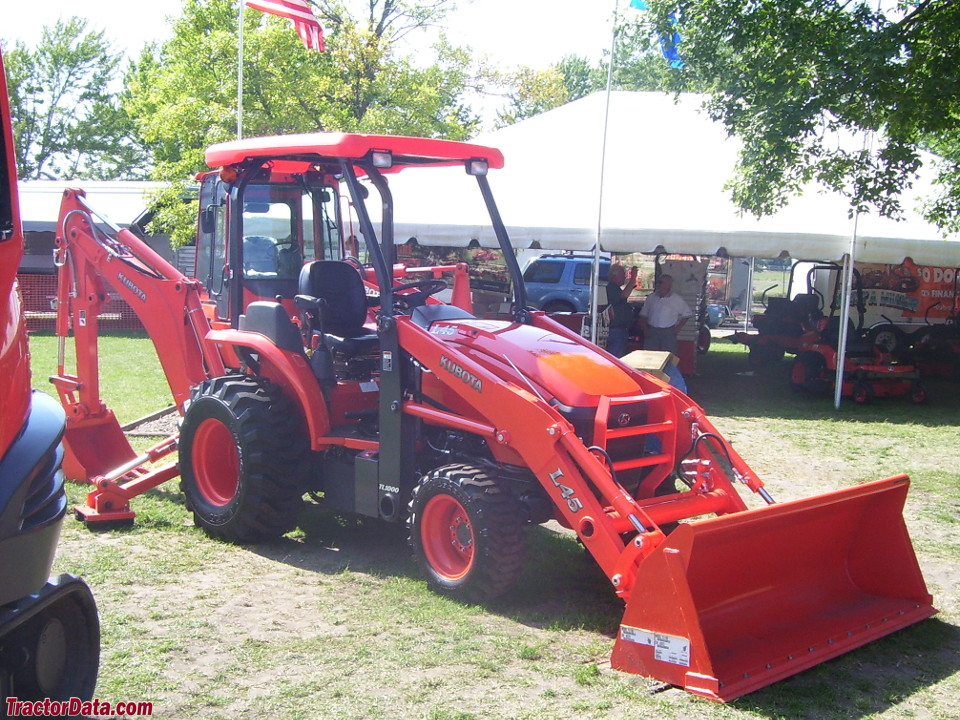

Kubota L45 backhoe photo
2009 - 2015
Backhoe loader tractor
Next model:Kubota L47






Production:

Manufacturer:Kubota
Original price (USD):$43,672 (2011)


Kubota L45 Engine:

   Kubota 2.2L 4-cyl diesel
full engine details ...


Capacity:

Fuel:11.9 gal [45.0 L]
Hydraulic system:12.2 gal [46.2 L]
Front axle:7.4 qts [7.0 L]


3-Point Hitch:

Rear Type:I (optional)
Rear lift (at ends):3,850 lbs [1746 kg]
Rear lift (at 24"/610mm):2,756 lbs [1250 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540 (1.375)
Engine RPM:540@2590


Dimensions & Tires:

Wheelbase:72.5 inches [184 cm]
Weight:7,173 lbs [3253 kg]
Front tire:27x10.5-15
Rear tire:15x19.5
full dimensions and tires ...


Backhoe & Loader:

Dig depth:121 inches [307 cm]
Dump angle:44 inches [111 cm]
full backhoe/loader specifications ...


L45 Serial Numbers:


how to read serial numbers...



Kubota L45 Power:

Engine (gross):45 hp [33.6 kW]
Engine (net):42.5 hp [31.7 kW]
PTO (claimed):32 hp [23.9 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Differential lock:rear standard
Steering:hydrostatic power
Brakes:mechanical wet disc
Cab:Four-post ROPS with FOPS canopy standard.


Hydraulics:

Type:open center
Capacity:12.2 gal [46.2 L]
Valves:1 to 3
Pump flow:11.8 gpm [44.7 lpm] (remotes)
 6.2 gpm [23.5 lpm] (backhoe boom)
Total flow:25 gpm [94.6 lpm]
Steering flow:6.6 gpm [25.0 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:45


Battery:

Number:1
Volts:12
Amp-hours:80
