John Deere 410B


John Deere 410B tractor photo
1983 - 1986
Backhoe loader tractor
Series map:
410B
62.0hp
Production
ManufacturerJohn Deere
Backhoe loader tractor
Built in Dubuque, Iowa, USA
John Deere 410B Engine
John Deere 3.6L 4-cyl diesel
Engine details ...
John Deere 410B Power
Engine (gross)66 hp
49.2 kW
Engine62 hp
46.2 kW
Mechanical
Two- or four-wheel drive
Power steering
Differential hydraulic wet disc brakes
ROPS canopy. Cab optional with available air-conditioning.
Photos
No photos of the John Deere 410B are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel23 gal
87.1 L
Hydraulic system19 gal
71.9 L
Hydraulics
Typeclosed center
Capacity19 gal
71.9 L
Pressure2500 psi
172.4 bar
Total flow30 gpm
113.6 lpm
Dimensions & Tires
Wheelbase82.7 inches (2WD)
210 cm
 83.3 inches (4WD)
211 cm
Weight14400 lbs
6531 kg
Front tire11L-15
Rear tire17.5L-24
Full dimensions and tires ...
Backhoe & Loader
Dig depth174 to 222 inches
Dump angle45 inches
114 cm
Loader/Backhoe details ...

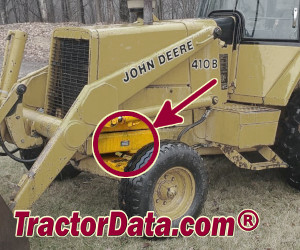

410B Serial Number Location
John Deere 410B serial number location
Serial number plate on the left side of the frame, above the front axle.
Electrical
Charging systemalternator
ROPS Charging amps35
Cab Charging amps51
Battery volts12
References
410B references literature
Operator's Manual JD410B Backhoe Loader (OMT79035) published in 1984
