John Deere 410
| | 1971 - 1983 |
| Backhoe loader tractor |
|
| Production |
| Manufacturer | John Deere
|
| Backhoe loader tractor |
| Built in Dubuque, Iowa, USA |
| John Deere 410 Power |
| Engine (gross) | 66 hp
49.2 kW
|
| Engine (net) | 62 hp
46.2 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Final drives | inboard planetary
|
| Power steering |
| Hydraulic wet disc brakes |
| Four-post ROPS. Cab optional with available heater. |
| Capacity |
| Fuel | 19.5 gal
73.8 L
|
| Hydraulic system | 20.5 gal
77.6 L
|
| Hydraulics |
| Type | closed center
|
| Capacity | 20.5 gal
77.6 L
|
| Pressure | 2350 psi
162.0 bar
|
| Pump flow | 38 gpm
143.8 lpm
|

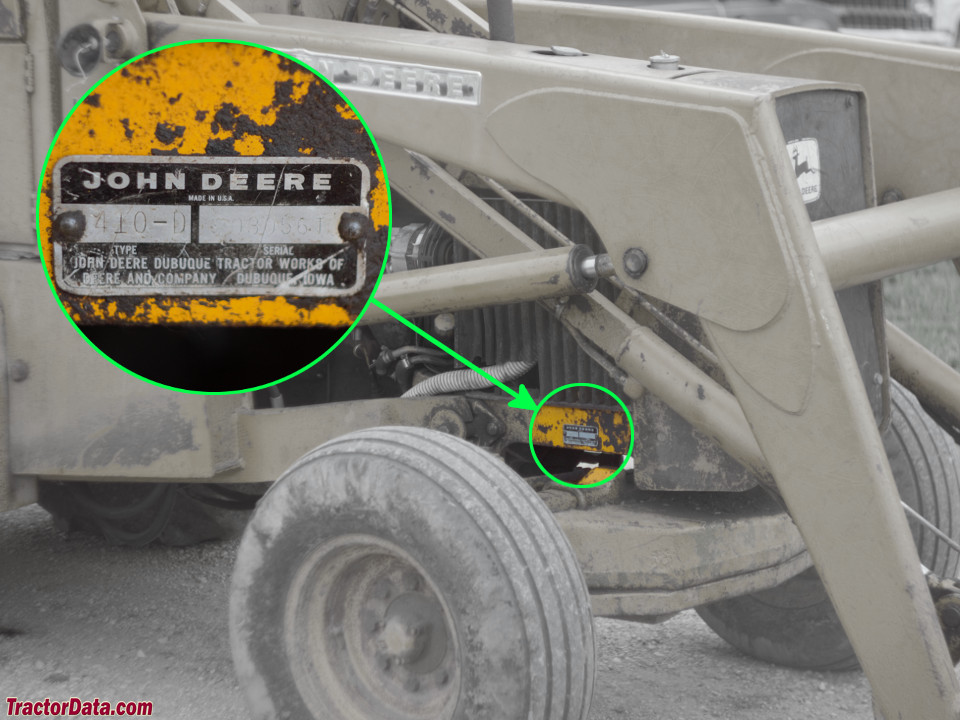

| 410 Serial Number Location |
 |
| Serial number plate on the right side of the Deere 410 frame, above the front axle. |
| Electrical |
| Charging system | alternator
|
| Batteries | 2
|
| Battery volts | 6
|
| Battery AH | 340
|
| References |
 |
| JD410 Backhoe Loader published in 1979, by John Deere |
| Utility Purchasing Guide published in 1972, by John Deere |
| Utility Purchasing Guide published in 1973, by John Deere |
| Utility Purchasing Guide published in 1978, by John Deere |
| Utility Purchasing Guide published in 1979, by John Deere |
| Industrial Equipment Division published in 1980, by John Deere |
| Utility Equipment Purchasing Guide published in 1981, by John Deere |
