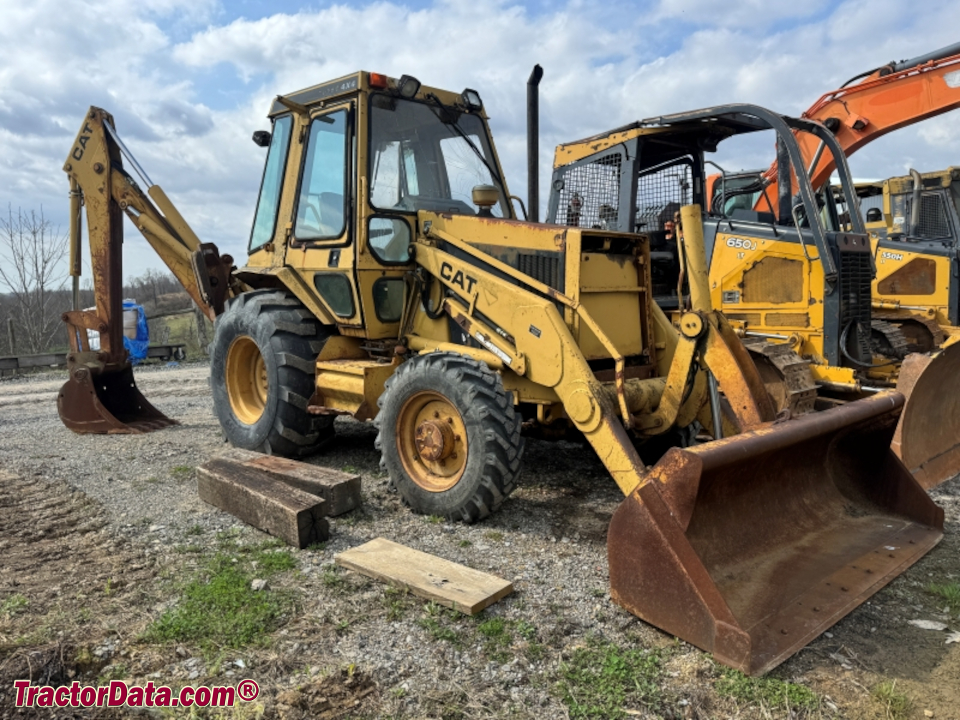

Caterpillar 416
|
|
| Production | |
| Manufacturer | Caterpillar |
| Backhoe loader tractor | |
| Caterpillar 416 Engine | |
| Perkins 3.9L 4-cyl diesel | |
 Engine details ... |
| Caterpillar 416 Transmission | |
| 4-speed power shuttle | |
 Transmission details ... |
| Caterpillar 416 Power | |
| Engine (net) | 62 hp 46.2 kW |
| Mechanical | |
| Drive | 4x2 2WD |
| 4x4 MFWD 4WD *Optional after 1986 | |
| Final drives | inboard planetary |
| Differential lock | mechanical rear |
| Power steering | |
| Wet disc brakes | |
| Four-post ROPS. Cab optional with available air-conditioning. | |
| Photos | |
 | |
 Caterpillar 416 photos... | |
| Capacity | |
| Fuel | 22 gal 83.3 L |
| Hydraulic system | 10 gal 37.9 L |
| Hydraulics | |
| Type | closed center |
| Capacity | 10 gal 37.9 L |
| Pressure | 2700 psi 186.2 bar |
| Pump flow | 28.5 gpm 107.9 lpm |
| Dimensions & Tires | |
| Wheelbase | 82.5 inches 209 cm |
| Weight | 13420 lbs 6087 kg |
| Front tire | 11L-16 |
| Rear tire | 16.9-24 |
 Full dimensions and tires ... | |
| Backhoe & Loader | |
| Dig depth | 169.9 inches 431 cm |
| Dump angle | 45 inches 114 cm |
 Loader/Backhoe details ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 52 |
| Battery volts | 12 |
| References | |
 | |
| 416 Backhoe Loader published in 1985, by Caterpillar |
