Lawn Tractors > Bolens > 650

Bolens 650 Engine



Bolens 650 lawn tractor photo
1966
Tube Frame Series
Garden tractor
Series map:
650
6.0hp
Engine Detail
Briggs & Stratton 146402
gasoline
1-cylinder
air-cooled
Displacement231 cc
14.1 ci
Bore/Stroke2.75x2.375 inches
70 x 60 mm
Power6 hp
4.5 kW
Rated RPM3600
Startermanual recoil
 electric optional
Starter volts12
Oil capacity2.75 qts
2.6 L

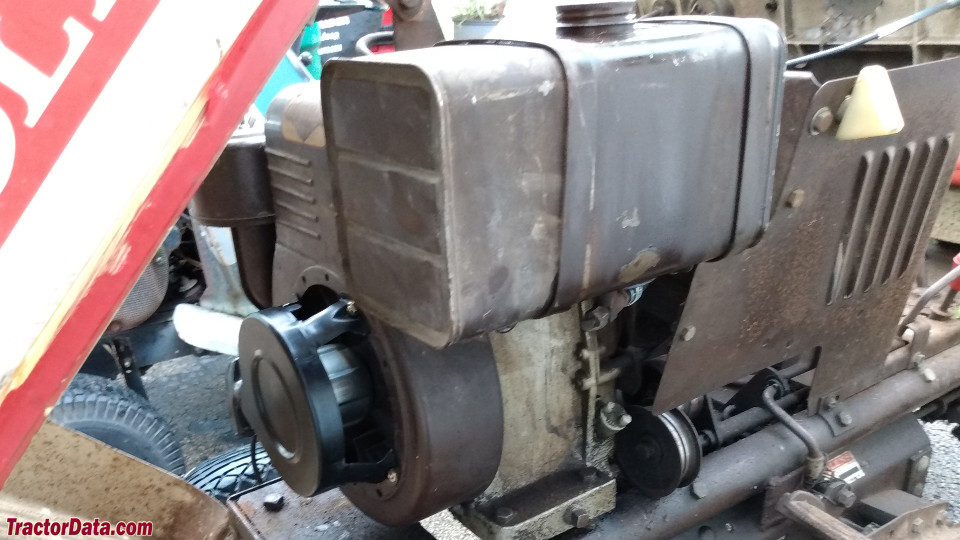

Bolens 650 Engine
Bolens 650 engine image
Image courtesy of Myles Gifford
