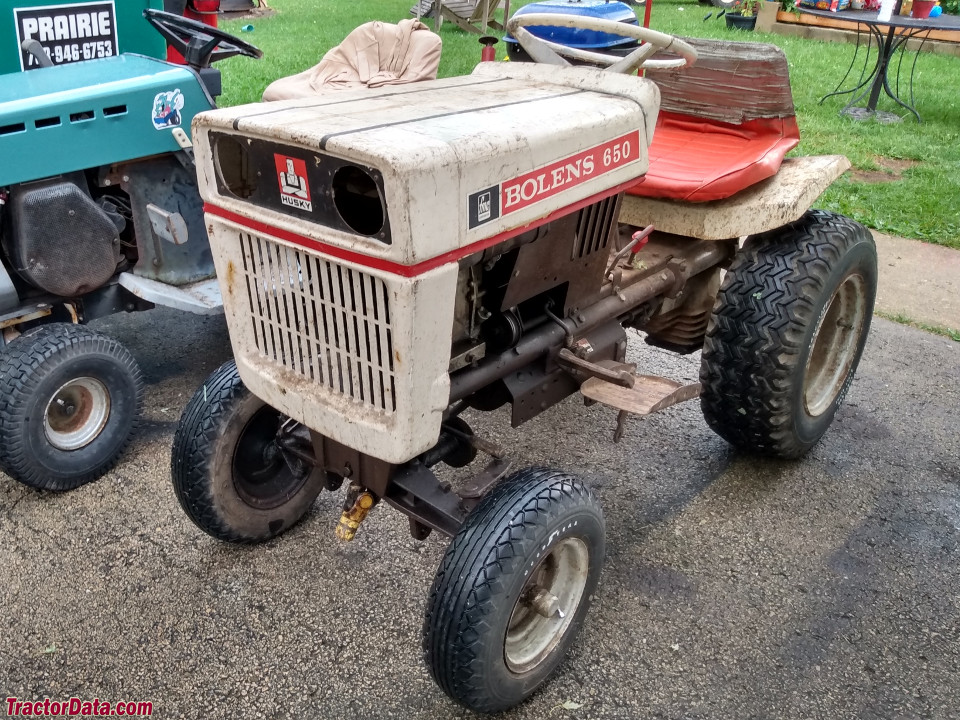

Bolens 650
|
|
| Production | |
| Manufacturer | Bolens |
| Garden tractor | |
| Built in Port Washington, Wisconsin, USA | |
| Original price was $536 in 1965 | |
| Bolens 650 Engine | |
| 6HP Briggs & Stratton 231cc 1-cyl gasoline | |
| Fuel tank | 1 gal 3.8 L |
 Engine details ... | |
| Bolens 650 Transmission | |
| 3-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Drum brakes | |
| Open operator station |
| Photos | |
 | |
 Bolens 650 photos... | |
| Power Take-off (PTO) | |
| Front PTO | independent |
| Clutch | manual |
| Front PTO Type | shaft |
| pulley OptOptional | |
| Engine RPM | 3600@3600 |
| Dimensions & Tires | |
| Wheelbase | 42.5 inches 107 cm |
| Weight | 530 to 585 pounds |
| Front tire | 4.00-8 |
| Rear tire | 6.00-12 |
 Full dimensions and tires ... | |
| Bolens 650 attachments | |
| 32" mid-mount mower deck | |
| snowblower | |
| blade | |
 Attachment details ... |
| 650 Serial Numbers | |
| Location: | Serial number plate on the left side of the tractor frame. |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |
| Owner Operation and Maintenance Manual Husky Tractor Six-Fifty (551223-2) published in 1962 | |
| Outdoor Power Equipment published in 1966, by Bolens | |
| Husky Tractors published in 1966, by Bolens | |
| PTO Pulley Attachment 18704 (551567) published in 1965 |
