Cub Cadet 3185
1998 3000 Series Garden tractor
Series map:
3165
3185
3186
16.0hp
18.0hp
18.0hp
Production Manufacturer Cub Cadet (a part of MTD)
Garden tractor Original price was $5,400 in 1998
Mechanical Two-wheel drive Power steering Disc brakes Open operator station.
Tractor hitch Rear Type 0 Opt Optional
Power Take-off (PTO) Front PTO independent
Clutch electro-pneumatic idler
Front PTO Type shaft (SAE BB)
3185 Serial Numbers Location: Serial number decal on the left side of the frame, above the front axle.
Electrical Ground negative
Charging system flywheel alternator
Charging amps 16
Battery CCA 440
Battery volts 12

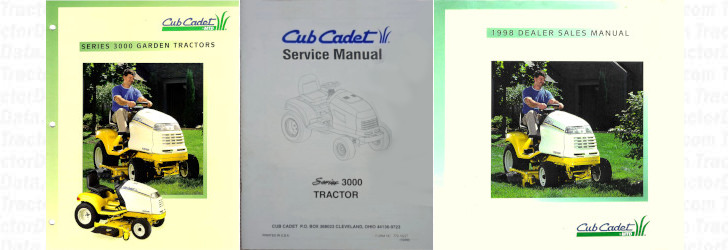

References Series 3000 Garden Tractors published in 1997, by Cub Cadet 3000 Series Service Manual (770-10227) published in 1999 1998 Dealer Sales Manual published by Cub Cadet
