| | 1998 |
| 3000 Series | | Garden tractor |
|
Series map:
3165
3185
3186
16.0hp
18.0hp
18.0hp
| Engine Detail |
| Vanguard 350447 |
| gasoline |
| 2-cylinder |
| air-cooled horizontal-shaft V-Twin |
| Displacement | 568 cc
34.7 ci
|
| Bore/Stroke | 2.83x2.76 inches
72 x 70 mm
|
| Power (gross) | 18 hp
13.4 kW
|
| Compression | 8.5:1
|
| Rated RPM | 3350
|
| Idle RPM | 1400-3600
|
| Starter | electric
|
| Starter volts | 12
|
| Sparkplug | Champion RC12YC
|

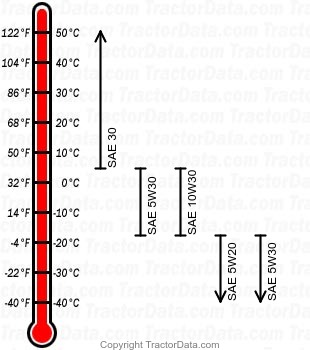

| Engine Oil |
|
| Oil capacity | 1.75 qts
1.7 L
|
