Cub Cadet 3240

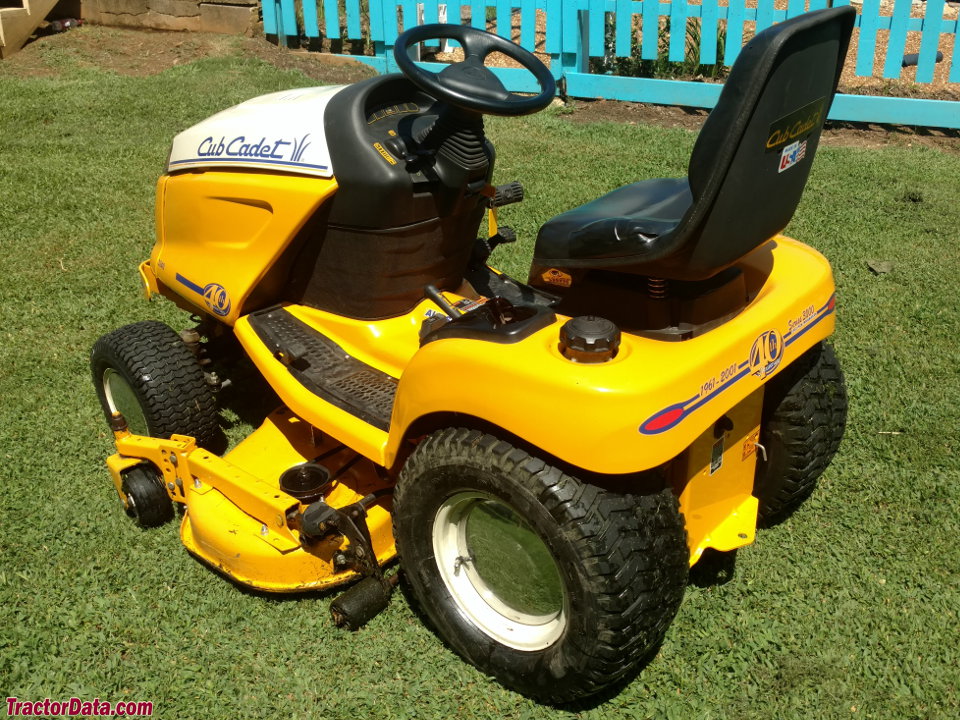

Cub Cadet 3240 lawn tractor photo
2001 - 2001   3000 Series
Garden tractor





The Cub Cadet 3240 was a 40th Anniversary special edition featuring a unique paint scheme and special decals.


Production:

Manufacturer:MTD


Cub Cadet 3240 Engine:

   22HP Kohler 673cc 2-cyl gasoline
full engine details ...


Capacity:

Fuel:4.5 gal [17.0 L]


3-Point Hitch:

Rear Type:0 (optional)


Power Take-off (PTO):

Front PTO:independent
Clutch:E-Vac


Dimensions & Tires:

Wheelbase:49.5 inches [125 cm]
Weight:803 lbs [364 kg]
Front tire:16x7.5-8
Rear tire:24x10.5-12
full dimensions and tires ...


Cub Cadet 3240 attachments:

 44" mid-mount mower deck
 48" mid-mount mower deck
 54" mid-mount mower deck
 snowblower
 blade
all 3240 attachments ...


3240 Serial Numbers:


- Serial numbers unknown -



Mechanical:

Transmission:hydrostatic
Chassis:4x2 2WD
Differential lock:standard
Steering:power
Brakes:external disc
Cab:Open operator station.


Electrical:

Ground:negative
Charging system:flywheel alternator
Charging volts:15


Battery:

Number:1
Cold-cranking amps:435
Volts:12
