Lawn Tractors > Cub Cadet > 3240

Cub Cadet 3240 Engine



Cub Cadet 3240 tractor photo
2001
3000 Series
Garden tractor
Series map:
3235
3240
23.0hp
22.0hp

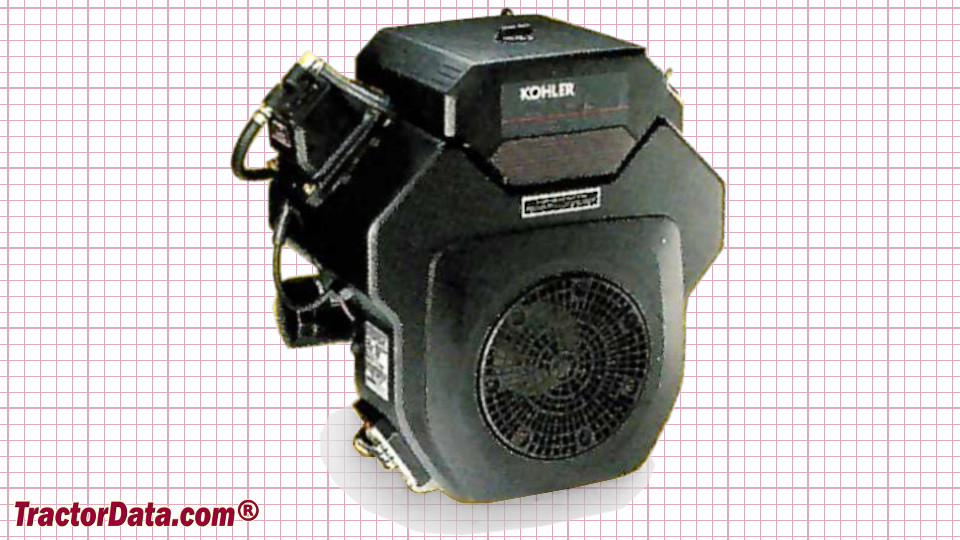

Engine Detail
Kohler CH22S
gasoline
2-cylinder
air-cooled horizontal-shaft V-twin
Displacement673 cc
41.1 ci
Bore/Stroke3.15x2.64 inches
80 x 67 mm
Power (gross)22 hp
16.4 kW
Compression8.5:1
Rated RPM3450
Idle RPM1450-3600
Starterelectric
Starter volts12
Oil capacity2 qts
1.9 L
