| Production: |
Manufacturer: | Cub Cadet (a part of International Harvester)
|
Factory: | Louisville, Kentucky, USA
|
| |
10HP Kohler 389cc 1-cyl gasoline |
full engine details ... | | Capacity: |
Fuel: | 2 gal [7.6 L]
|
| Rear Hitch: |
Type: | sleeve hitch (optional)
|
| |
Rear PTO: | transmission
|
Rear RPM: | 515 (0.937)
|
Front PTO: | independent
|
Clutch: | electric
|
Front RPM: | 3400
|
| |
Wheelbase: | 44 inches [111 cm]
|
Weight: | 630 lbs [285 kg]
|
Front tire: | 4.80/4.00-8
|
Rear tire: | 6-12
|
full dimensions and tires ... | | |
38" mid-mount mower deck |
44" mid-mount mower deck |
50" mid-mount mower deck |

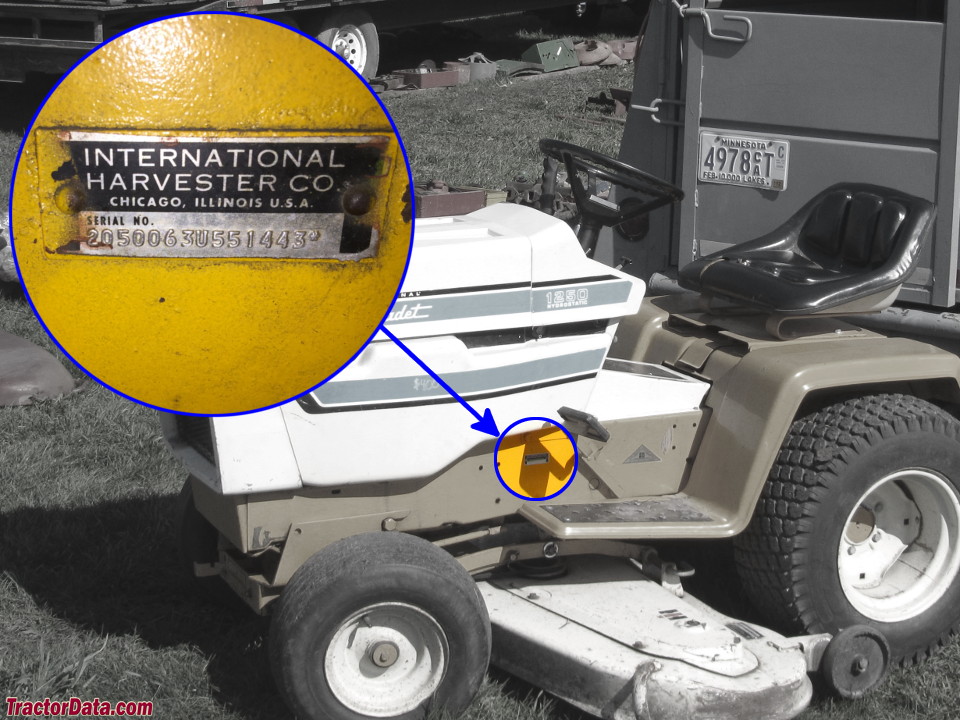

all 1000 attachments ... | | 1000 Serial Numbers: |
how to read serial numbers...
|
|
|
| Mechanical: |
Transmission: | 3-speed unsynchronized gear
|
Transmission: | 6-speed creeper
|
Chassis: | 4x2 2WD
|
Steering: | manual
|
Brakes: | dry disc
|
| wet disc (after SN 568631)
|
Cab: | Open operator station.
|
| Electrical: |
Ground: | negative
|
Charging system: | flywheel alternator
|
Charging amps: | 15
|
| Battery: |
Number: | 1
|
Volts: | 12
|
