Lawn Tractors > Allis Chalmers > 919

Allis Chalmers 919

Allis Chalmers 919 lawn tractor photo
1981 - 1985   900 Series
Garden tractor
Series next:Allis Chalmers 920
Series back:Allis Chalmers 917






Production:

Manufacturer:Allis Chalmers
Factory:Port Washington, Wisconsin, USA


Allis Chalmers 919 Engine:

   19HP Kohler 770cc 2-cyl gasoline
full engine details ...


Capacity:

Fuel:3 gal [11.4 L]


Rear Hitch:

Type:sleeve hitch


Power Take-off (PTO):

Rear PTO:live
Mid PTO:live
Front PTO:live


Dimensions & Tires:

Wheelbase:50.7 inches [128 cm]
Front tire:16-6.50x8
Rear tire:23-10.50x12
full dimensions and tires ...


Allis Chalmers 919 attachments:

 48" mid-mount mower deck
 snowblower
 blade
all 919 attachments ...


919 Serial Numbers:

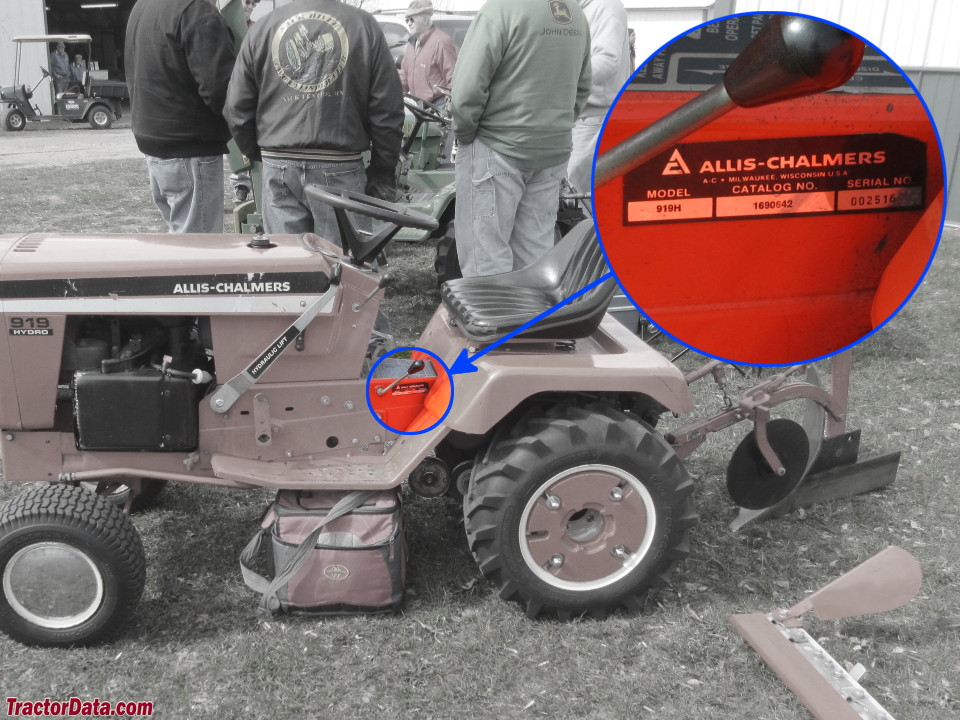

Location:Left side of frame, ahead of seat.

- Serial numbers unknown -



Links:

SimpleTractors.com: information, photos and old advertising literature at SimpleTractors.com


Mechanical:

Transmission:hydrostatic
Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.


Electrical:

Ground:negative
Charging system:flywheel alternator
Charging amps:15


Battery:

Number:1
Volts:12
Amp-hours:45
