    Allis Chalmers 416

    Allis Chalmers 416 lawn tractor photo
    1973 - 1973   400 Series
    Garden tractor
    Smaller:Allis Chalmers 414





    The Allis-Chalmers 416S was Simplicity model code 1600260 and the Allis-Chalmers 416H was model code 1600261. There was no corresponding Simpicity model, but these codes are used to identify parts and manuals in the Simplicity catalog.


    Production:

    Manufacturer:Allis Chalmers
    Factory:Lexington, South Carolina, USA


    Variants:

    416S:shuttle
    416H:hydrostatic


    Allis Chalmers 416 Engine:

       Kohler 588cc 1-cyl gasoline
    full engine details ...


    Capacity:

    Fuel:3.5 gal [13.2 L]


    Power Take-off (PTO):

    Rear PTO:optional
    Rear RPM:540
    Front PTO:independent
    Clutch:electric
    Front RPM:3600


    Dimensions & Tires:

    Wheelbase:48.1 inches [122 cm]
    Weight:852 to 869 pounds
    Front tire:16-6.50x8
    Rear tire:23-10.50x12
    full dimensions and tires ...


    Allis Chalmers 416 attachments:

     42" mid-mount mower deck
     48" mid-mount mower deck
     snowblower
     blade
    all 416 attachments ...


    416 Serial Numbers:

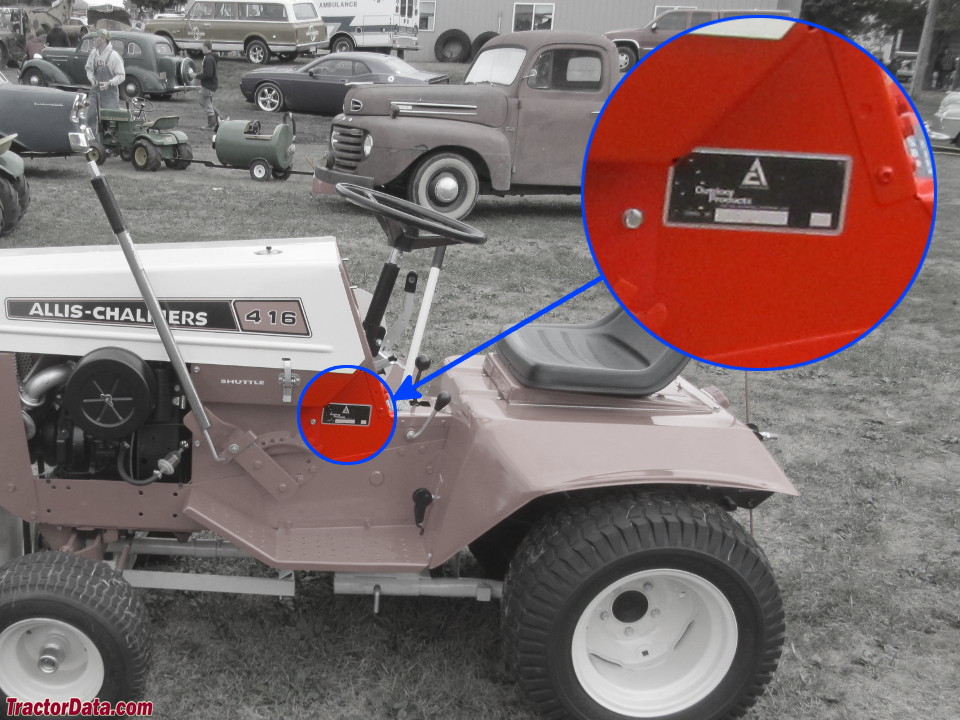

    Location:Serial number plate on left side of tractor.

    - Serial numbers unknown -



    Links:

    SimpleTractors.com: information, photos and old advertising literature at SimpleTractors.com


    Allis Chalmers 416 Power:

    Engine:16 hp [11.9 kW]


    Mechanical:

    Chassis:4x2 2WD
    Steering:manual
    Cab:Open operator station.


    Electrical:

    Ground:negative
    Charging system:flywheel alternator
    Charging amps:15


    Battery:

    Number:1
    Volts:12
