| | 1973 |
| 400 Series | | Garden tractor |
|
Series map:
414
416
14.0hp
16.0hp
| Transmissions overview |
| 4-speed shuttle |
| hydrostatic |
| Transmission |
| Type | belt-driven shuttle
|
| Gears | 4 forward and reverse
|
| Oil capacity | 1.5 qts
1.4 L
|
| Four speed transmission with right-hand shuttle lever. Tractor must be stopped to shift gears and shuttle lever in neutral, or the clutch/brake pedal fully depressed. |

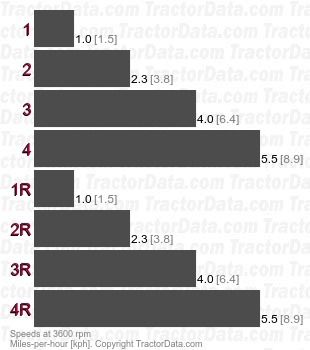

| Speeds |
|
| Shift Pattern |
 |

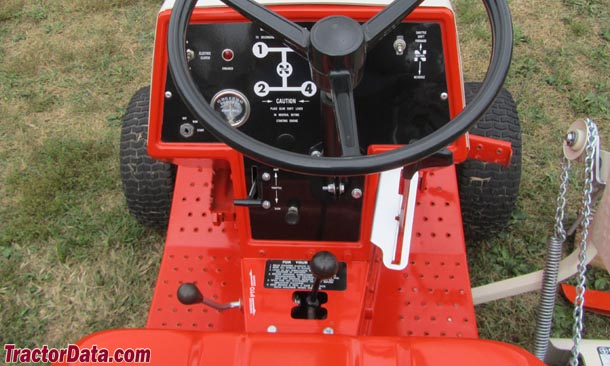

| 416 Transmission Controls |
 |
| 1 | Throttle
|
| 2 | Clutch/brake
|
| 3 | Shuttle shift
|
| 4 | Gear shift
|
| Transmission |
| Type | belt-driven hydrostatic
|
| Gears | infinite forward and reverse
|

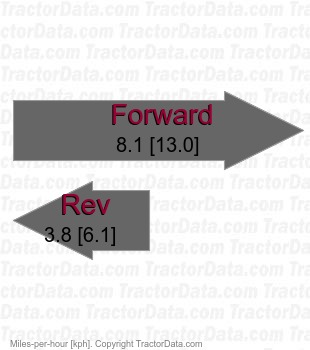

| Speeds |
|
| 416 Transmission Controls |
 |
| 1 | Throttle
|
| 2 | Clutch/brake
|
| 3 | Forward/reverse
|
